Product Summary
The ADS1252U is a precision, wide dynamic range, deltasigma, Analog-to-Digital (A/D) converter with 24-bit resolution operating from a single +5V supply. An effective resolution of 19 bits (2.5ppm of rms noise) is achieved for conversion rates up to 40kHz. The ADS1252U is designed for high-resolution measurement applications in cardiac diagnostics, smart transmitters, industrial process control, weight scales, chromatography, and portable instrumentation. The ADS1252U includes a flexible, 2-wire synchronous serial interface for low-cost isolation. The applications of the ADS1252U include cardiac diagnostics, direct thermocouple interfaces, blood analysis, infrared pyrometers, liquid/gas chromatography, precision process control.
Parametrics
ADS1252U absolute maximum ratings: (1)Analog Input: Current: ±100mA, Momentary; ±10mA, Continuous; (2)Voltage: GND – 0.3V to VDD + 0.3V; (3)VDD to GND: –0.3V to 6V; (4)VREF Voltage to GND: –0.3V to VDD + 0.3V; (5)Digital Input Voltage to GND: –0.3V to VDD + 0.3V; (6)Digital Output Voltage to GND: –0.3V to VDD + 0.3V; (7)Lead Temperature (soldering, 10s): +300℃; (8)Power Dissipation (any package): 500mW.
Features
ADS1252U features: (1)24 bits—no missing codes; (2)19 bits effective resolution up to 40kHz data rate; (3)low noise: 2.5ppm; (4)differential inputs; (5)INL: 0.0015% (max); (6)external reference (0.5V to 5V); (7)power-down mode; (8)sync mode.

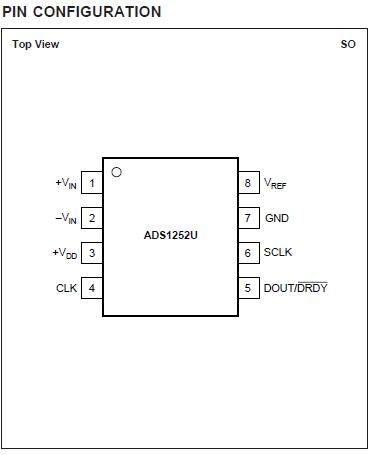

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADS1252U |
Texas Instruments |
ADC (A/D Converters) ResolutionPlus 24-Bit 40kHz |
Data Sheet |
|
|
||||||||||||
|
ADS1252U/2K5 |
Texas Instruments |
ADC (A/D Converters) ResolutionPlus 24-Bit 40kHz |
Data Sheet |
|
|
||||||||||||
|
ADS1252U/2K5G4 |
Texas Instruments |
ADC (A/D Converters) ResolutionPlus 24-Bit 40kHz |
Data Sheet |
|
|
||||||||||||
|
ADS1252UG4 |
Texas Instruments |
ADC (A/D Converters) ResolutionPlus 24-Bit 40kHz |
Data Sheet |
|
|
||||||||||||
