Product Summary
The ADS7870EA is a complete low-power data acquisition system on a single chip. The ADS7870EA consists of a 4-channel differential/8-channel single-ended multiplexer, precision programmable gain amplifier, 12-bit successive approximation analog-todigital (A/D) converter, and a precision voltage reference. The programmable-gain amplifier provides high input impedance, excellent gain accuracy, good common-mode rejection, and low noise. The applications of the ADS7870EA inlcude Portable Battery-Powered Systems, Low-Power Instrumentation, Low-Power Control Systems and Smart Sensor Applications.
Parametrics
ADS7870EA absolute maximum ratings: (1)Supply voltage, VDD: 5.5 V; (2)Analog inputs, Input current, Momentary: 100 mA; Continuous 10 mA; Input voltage: VDD + 0.5 V to GND . 0.5 V; (3)Operating free-air temperature range, TA: -40℃ to 85℃; (4)Storage temperature range, TSTG: -65℃ to 150℃; (5)Junction temperature (TJ max): 150℃; (6)Lead temperature, soldering (10 sec): 300℃.
Features
ADS7870EA features: (1)PGA Gains: 1, 2, 4, 5, 8, 10, 16, 20 V/V; (2)Programmable Input (Up to 4-Channel Differential/Up to 8-Channel Single-Ended or Some Combination); (3)1.15-V, 2.048-V, or 2.5-V Internal Reference; (4)SPI/DSP Compatible Serial Interface (≤ 20 MHz); (5)Throughput Rate: 52 kSamples/sec; (6)Error Overload Indicator; (7)Programmable Output 2s Complement/Binary; (8)2.7-V to 5.5-V Single Supply Operation; (9)4-Bit Digital I/O Via Serial Interface; (10)Pin-Compatible With ADS7871; (11)SSOP-28 Package.

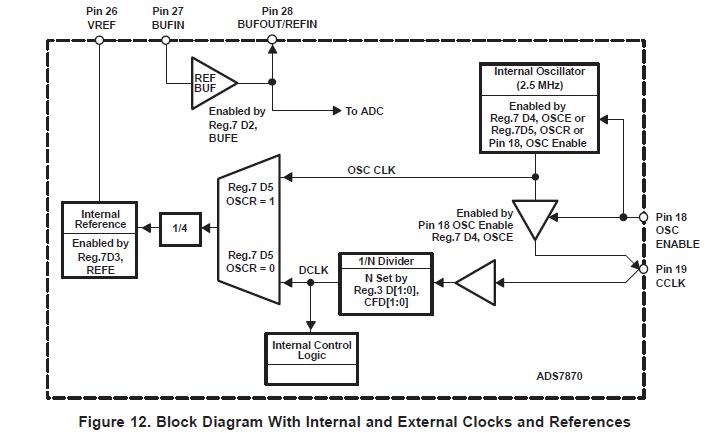

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADS7870EA |
Texas Instruments |
ADC (A/D Converters) 12-Bit ADC MUX PGA |
Data Sheet |
|
|
||||||||||||
|
ADS7870EA/1K |
Texas Instruments |
ADC (A/D Converters) 12-Bit ADC MUX PGA |
Data Sheet |
|
|
||||||||||||
|
ADS7870EAG4 |
Texas Instruments |
ADC (A/D Converters) 12-Bit ADC MUX PGA |
Data Sheet |
|
|
||||||||||||
|
ADS7870EA/1KG4 |
Texas Instruments |
ADC (A/D Converters) 12-Bit ADC MUX PGA |
Data Sheet |
|
|
||||||||||||
