Product Summary

The ADS7822UB is a 12-bit sampling analog-to-digital (A/D) converter with ensured specifications over a 2.7V to 5.25V supply range. The ADS7822UB requires very little power even when operating at the full 75kHz rate. At lower conversion rates, the high speed of the device enables it to spend most of its time in the power-down mode—the power dissipation is less than 60μW at 7.5kHz. The applications of the ADS7822UB include battery-operated systems, remote data acquisition, isolated data acquisition, simultaneous sampling, multi-channel systems.

Parametrics

ADS7822UB absolute maximum ratings: (1)VCC: +6V; (2)Analog Input: –0.3V to (VCC + 0.3V); (3)Logic Input:–0.3V to 6V; (4)Case Temperature: +100℃; (5)Junction Temperature: +150℃; (6)Storage Temperature: +125℃; (7)External Reference Voltage: +5.5V.

Features

ADS7822UB features: (1)75kHz sampling rate; (2)micro power: 0.54mW at 75kHz; 0.06mW at 7.5kHz; (3)power down: 3μA max; (4)MINI-DIP-8, SOIC-8, and MSOP-8; (5)pseudo-differential input; (6)serial interface.

Diagrams

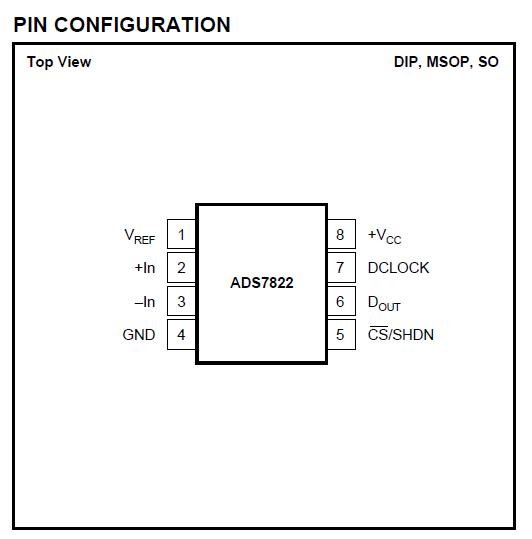

ADS7822UB pin configuration
