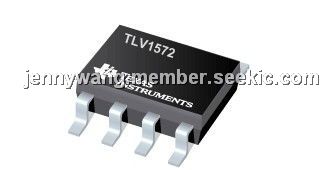

The TLV1572IDR is a 10-bit successive-approximation (SAR) analog-to-digital (A/D) converter that operates from a single 2.7-V to 5.5-V power supply and is housed in a small 8-pin SOIC package. The TLV1572IDR accepts an analog input range from 0 to VCC and digitizes the input at a maximum 1.25 MSPS throughput rate. Very high throughput rate, simple serial interface, SO-8 package, 3-V operation, and low power consumption make the TLV1572IDR an ideal choice for compact or remote high-speed systems. The applications of TLV1572IDR include Mass Storage and HDD, Automotive, Digital Servos, Process Control, General Purpose DSP, Contact Image Sensor Processing.
Parametrics
TLV1572IDR absolute maximum ratings: (1)Supply voltage range, VCC: –0.3 V to 6.5 V; (2)Input voltage range, VI (any input): –0.3 V to VCC + 0.3 V; (3)Reference input voltage, VO: VCC + 0.3 V; (4)Digital input voltage range: –0.3 V to VCC + 0.3 V; (5)Operating free-air temperature range, TA: 0℃ to 70℃; (6)Storage temperature range, Tstg: –65℃ to 150℃; (7)Lead temperature 1,6 mm (1/16 inch) from the case for 10 seconds: 260℃.
Features
TLV1572IDR features: (1)Fast Throughput Rate: 1.25 MSPS; (2)8-Pin SOIC Package; (3)Differential Nonlinearity Error: < ±1 LSB; (4)Integral Nonlinearity Error: < ±1 LSB; (5)Signal-to-Noise and Distortion Ratio: 59 dB, f(input) = 500 kHz; (6)Single 3-V to 5-V Supply Operation; (7)Very Low Power: 8 mW at 3V; 25mW at 5 V; (8)Auto-Powerdown: 10 mA Maximum; (9)Glueless Serial Interface to TMS320 DSPs and (Q)SPI Compatible Micro-Controllers; (10)Inherent Internal Sample and Hold Operation.
Diagrams
