TPS2211APWPR

Product Summary

The TPS2211APWPR PC Card power-interface switch provides an integrated power-management solution for a single PC Card. All of the discrete power MOSFETs, a logic section, current limiting, and thermal protection for PC Card control are combined on a single integrated circuit, using the Texas Instruments LinBiCMOS. process. The circuit allows the distribution of 3.3-V, 5-V, and/or 12-V card power, and is compatible with many PCMCIA controllers. The current-limiting feature eliminates the need for fuses, which reduces component count and improves reliability. Current-limit reporting can help the user isolate a system fault to the PC Card. controllers. The current-limiting feature eliminates the need for fuses, which reduces component count and improves reliability. Current-limit reporting can help the user isolate a system fault to the PC Card. The TPS2211APWPR features a 3.3-V low-voltage mode that allows for 3.3-V switching without the need for 5 V. Bias power can be derived from either the 3.3-V or 5-V inputs. This facilitates low-power system designs such as sleep mode and pager mode where only 3.3 V is available. End equipment for the TPS2211APWPR includes notebook computers, desktop computers, personal digital assistants (PDAs), digital cameras, and bar-code scanners.

Parametrics

TPS2211APWPR absolute maixmum ratings: (1)Logic input voltage: -0.3 V to 7 V; (2)Continuous total power dissipation: See Dissipation Rating Table; (3)Output current (each card): IO(VCC): internally limited; (4)IO(VPP): internally limited; (5)Operating virtual junction temperature range, TJ: -40℃ to 150℃; (6)Operating free-air temperature range, TA: -40℃ to 85℃; (7)Storage temperature range, Tstg: -55℃ to 150℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TPS2211APWPR features: (1)Fully Integrated VCC and Vpp Switching for Single-Slot PC Card. Interface; (2)Low rDS(on) (70-mΩ 5-V VCC Switch and 3.3-V VCC Switch); (3)Compatible With Industry-Standard Controllers; (4)3.3-V Low-Voltage Mode; (5)Meets PC Card Standards; (6)12-V Supply Can Be Disabled Except During 12-V Flash Programming; (7)Short-Circuit and Thermal Protection; (8)Space-Saving 16-Pin SSOP (DB) and 20-Pin HTSSOP (PWP); (9)Compatible With 3.3-V, 5-V, and 12-V PC Cards; (10)Break-Before-Make Switching.

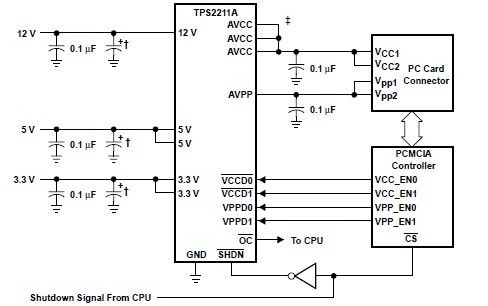

Diagrams
