Product Summary
The ADS1271IPWR is a 24-bit, delta-sigma analog-to-digital converter (ADC) with a data rate up to 105kSPS. The ADS1271IPWR offers a unique combination of excellent DC accuracy and outstanding AC performance. The high-order, chopper-stabilized modulator achieves very low drift with low in-band noise. The onboard decimation filter suppresses modulator and signal out-of-band noise. The ADS1271IPWR provides a usable signal bandwidth up to 90% of the Nyquist rate with less than 0.005dB of ripple. The applications of the ADS1271IPWR include Vibration/Modal Analysis, Acoustics, Dynamic Strain Gauges, Pressure Sensors and Test and Measurement.
Parametrics
ADS1271IPWR absolute maximum ratings: (1)AVDD to AGND: -0.3 to +6.0 V; (2)DVDD to DGND: -0.3 to +3.6 V; (3)AGND to DGND: -0.3 to +0.3 V; (4)Input Current: 100mA, Momentary; 10mA, Continuous; (5)Analog Input to AGND: -0.3 to AVDD + 0.3 V; (6)Digital Input or Output to DGND: -0.3 to DVDD + 0.3 V; (7)Maximum Junction Temperature: +150℃; (8)Operating Temperature Range: -40 to +105℃; (9)Storage Temperature Range: -60 to +150℃.
Features
ADS1271IPWR features: (1)105kSPS Data Rate; (2)AC Performance: 51kHz Bandwidth; 109dB SNR (High-Resolution Mode); -108dB THD; (3)DC Accuracy: 1.8μV/℃ Offset Drift; 2ppm/℃ Gain Drift; (4)Selectable Operating Modes: High-Speed: 105kSPS Data Rate; High-Resolution: 109dB SNR; (5)Low-Power: 35mW Dissipation; (6)Power-Down Control; (7)Internal Offset Calibration On Command; (8)Selectable SPI or Frame Sync Serial Interface; (9)Designed for Multichannel Systems: Daisy-Chainable Serial Interface; Easy Synchronization; (10)Simple Pin-Driven Control; (11)Modulator Output Option; (12)Specified from -40℃ to +105℃; (13)Analog Supply: 5V; (14)Digital Supply: 1.8V to 3.3V.

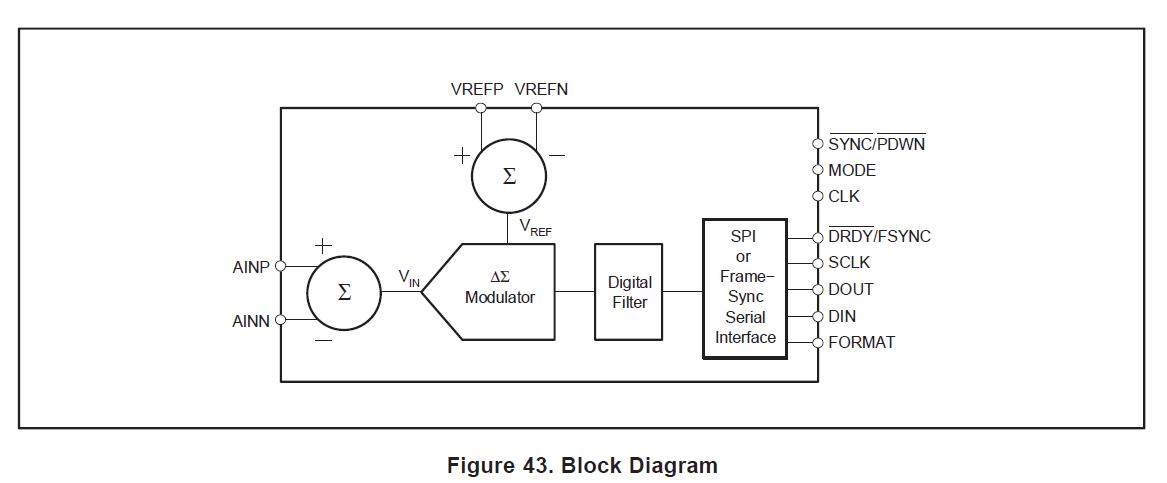

Diagrams
