ADS7864Y

dual 12-bit, 500kHz, analog-to-digital converter, TQFP-4, –0.3 to +6 V, fully differential inputs, no missing codes, 50mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.20~6.70 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.20~6.70

PartNumber:: ADS7864Y

Brand:: Texas Instruments - TI | Pack: TQFP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jenny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-20

From Other Seller

Part Number:ADS7864Y
US $6.20 - 6.70
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

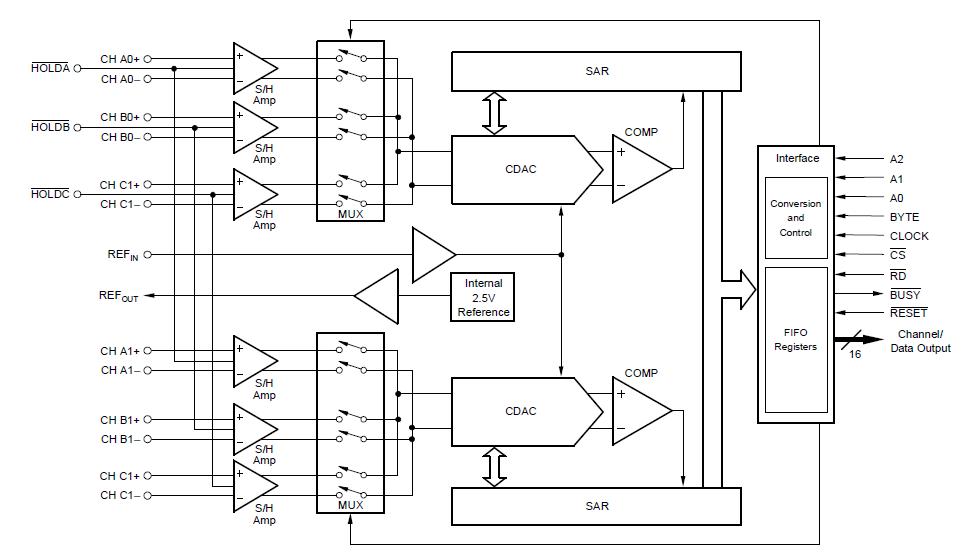

The ADS7864Y is a dual 12-bit, 500kHz analog-to-digital converter with 6 fully differential input channels grouped into three pairs for high speed simultaneous signal acquisition. Inputs to the sample-and-hold amplifiers are fully differential and are maintained differential to the input of the A/D converter. The ADS7864Y provides excellent common-mode rejection of 80dB at 50kHz which is important in high noise environments. The applications of the ADS7864Y include motor control, multi-axis positioning systems and 3-phase power control.

Parametrics

ADS7864Y absolute maximum ratings: (1)Analog Inputs to AGND: Any Channel Input: –0.3 to (+VD + 0.3) V; (2)Analog Inputs to AGND: REFIN: –0.3 to (+VD + 0.3) V; (3)Digital Inputs to DGND: –0.3 to (+VD + 0.3) V; (4)Ground Voltage Differences: AGND, DGND: ±0.3 V; (5)Ground Voltage Differences: +VD to AGND: –0.3 to +6 V; (6)Power Supply Difference: +VA, +VD: ±0.3 V; (7)Power Dissipation: 325 mW; (8)Maximum Junction Temperature: +150℃; (9)Operating Temperature Range: –40 to +85℃; (10)Storage Temperature Range: –65 to +150℃; (11)Lead Temperature (soldering, 10s): +300℃.

Features

ADS7864Y features: (1)6 simultaneous sampling channels; (2)fully differential inputs; (3)2μs total throughput per channel; (4)no missing codes; (5)parallel interface; (6)1MHz effective sampling rate; (7)low power: 50mW; (8)6X FIFO.
