ADS7862Y

dual 12-bit, 500kHz, analog-to-digital converter, TQFP, 40mW, –0.3V to +6V, 4 input channels, parallel interface, 1MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.10~6.35 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.10~6.35

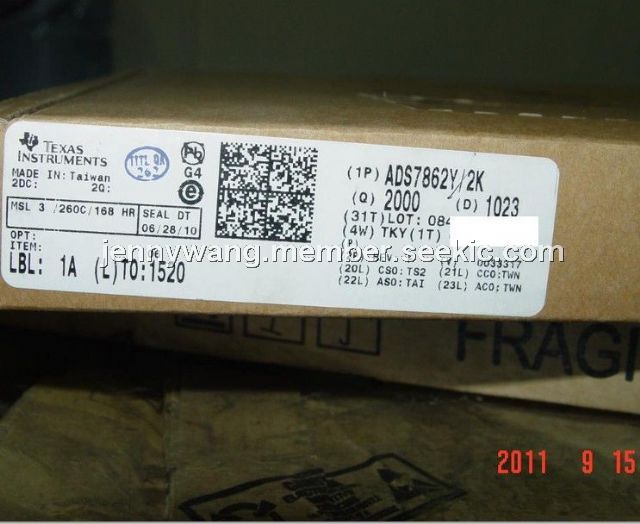

PartNumber:: ADS7862Y

Brand:: Texas Instruments - TI | Pack: TQFP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jenny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-19

From Other Seller

Part Number:ADS7862Y
US $6.10 - 6.35
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ADS7862Y is a dual 12-bit, 500kHz analog-to-digital converter (A/D) with 4 fully differential input channels grouped into two pairs for high speed simultaneous signal acquisition. Inputs to the sample-and-hold amplifiers are fully differential and are maintained differential to the input of the A/D converter. The ADS7862Y provides excellent common-mode rejection of 80dB at 50kHz, which is important in high noise environments. The applications of the ADS7862Y inlcude motor control, multi-axis positioning systems and 3-phase power control.

Parametrics

ADS7862Y absolute maximum ratings: (1)Analog Inputs to AGND: Any Channel Input: –0.3V to (+VD + 0.3V); REFIN: –0.3V to (+VD + 0.3V); (2)Digital Inputs to DGND: –0.3V to (+VD + 0.3V); (3)Ground Voltage Differences: AGND, DGND: ±0.3V; +VD to AGND: –0.3V to +6V; (4)Power Dissipation: 325mW; (5)Maximum Junction Temperature: +150℃; (6)Operating Temperature Range: –40 to +85℃; (7)Storage Temperature Range: –65 to +150℃; (8)Lead Temperature (soldering, 10s): +300℃.

Features

ADS7862Y features: (1)4 input channels; (2)fully differential inputs; (3)2μs total throughput per channel; (4)guaranteed no missing codes; (5)parallel interface; (6)1MHz effective sampling rate; (7)low power: 40mW.
