Product Summary
The OPA4132UA/2K5 is a high-speed fet-input operational amplifier.
Parametrics
OPA4132UA/2K5 absolute maximum ratings: (1)Vendor: Texas Instruments; (2)Category: Integrated Circuits (ICs); (3)Packaging: Tape & Reel (TR); (4)Amplifier Type: General Purpose; (5)Number of Circuits: 4; (6)Package / Case: 14-SOIC (0.154, 3.90mm Width); (7)Slew Rate: 20 V/μs; (8)Gain Bandwidth Product: 8MHz; (9)Current Supply: 4mA; (10)Current Output / Channel: 40mA; (11)Voltage Supply, Single/Dual (±): 5 V ~ 36 V, ±2.5 V ~ 18 V; (12)Current Input Bias: 5pA; (13)Operating Temperature: -40℃ ~ 85℃; (14)Voltage Input Offset: 500μV; (15)Lead Free Status: Lead Free.
Features
OPA4132UA/2K5 features: (1)Supply Voltage: V+ to V 36V; (2)Input Voltage (V–): –0.7V to (V+) +0.7V; (3)Output Short: Circuit Continuous; (4)Operating Temperature: –40℃ to +125℃; (5)Storage Temperature: –55℃ to +125℃; (6)Junction Temperature: 150℃; (7)Lead Temperature (soldering, 10s): 300℃.

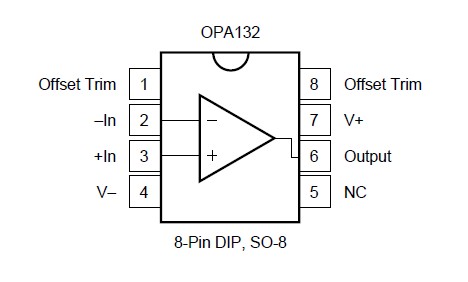

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OPA4132UA/2K5 |
Texas Instruments |
Operational Amplifiers - Op Amps High Speed FET-Input Oper Amplifier |
Data Sheet |
|
|
||||||||
|
OPA4132UA/2K5E4 |
Texas Instruments |
Operational Amplifiers - Op Amps High Speed FET-Input Oper Amplifier |
Data Sheet |
|
|
||||||||
|
OPA4132UA/2K5G4 |
Texas Instruments |
Operational Amplifiers - Op Amps Hi Speed FET-Input Op Amp |
Data Sheet |
|
|
||||||||
