Product Summary

The ADS8505IDWR is a complete 16-bit sampling A/D converter using state-of-the-arit CMOS structures. It contains complete 16-bit, capacitor-based, SAR A/D with S/H, reference, clock, interface for microprocessor use, and 3-state output drivers. The applications of the ADS8505IDWR include industrial process control, data acquisition systems, digital signal processing, medical equipment and instrumention. It is specified at a 250-kHz sampling rate over the full temeprature range. The ADS8505IDWR is avaliable in 28-pin SOIC and 28-pin SSOP packages. The ADS8505IDWR is specified for operaton over the industrial -40 to 85℃ temperature range.

Parametrics

ADS8505IDWR absolute maximum ratings: (1)analog input, VIN: ±25V; REF: +VANA + 0.3 V to AGND2 – 0.3 V; CAP: Indefinite short to AGND2, momentary short to VANA; (2)Ground voltage differences, DGND, AGND1, AGND2: ±0.3 V; VANA: 6 V; VDIG to VANA: 0.3 V; VDIG: 6 V; (3)Digital inputs: –0.3 V to +VDIG + 0.3 V; (4)Maximum junction temperature: 165℃; (5)Internal power dissipation: 825 mW; (6)Lead temperature (soldering, 10s): 300℃.

Features

ADS8505IDWR features: (1)105dB SFDR at 250-kHz Sample Rate; (2)Standard ±10-V Input Range; (3)±1.5 LSB Max INL; (4)±1 LSB Max DNL, 16-Bits No Missing Codes; (5)±2 mV Max Bipolar Zero Error With ±0.4 PPM/℃ Drift; (6)±0.1% FSR Max Full-Scale Error With ±2 PPM/℃ Drift; (7)Single 5-V Supply Operation; (8)Pin-Compatible With ADS7805 (Low Speed) and 12-Bit ADS8504/7804 ; (9)Uses Internal or External Reference; (10)Full Parallel Data Output; (11)70-mW Typ Power Dissipation at 250 KSPS; (12)28-Pin SSOP and SOIC Packages.

Diagrams

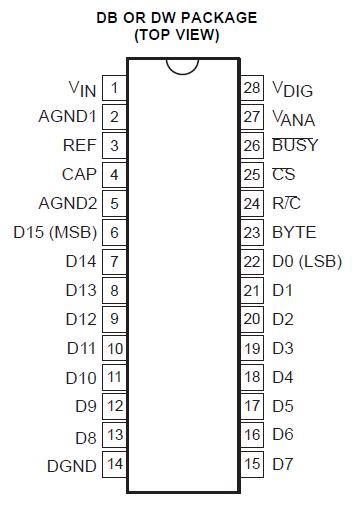

ADS8505IDWR pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADS8505IDWR
ADS8505IDWR
Texas Instruments
ADC (A/D Converters) 16-Bit 250kHz CMOS w/Parallel Interface
Data Sheet
0-786: $8.90
786-1000: $8.74
ADS8505IDWRG4
ADS8505IDWRG4
Texas Instruments
ADC (A/D Converters) 16-Bit 250kHz CMOS w/Parallel Interface
Data Sheet
0-786: $8.90
786-1000: $8.74
