Product Summary
The XTR106UA is a low cost, monolithic 4-20mA, twowire current transmitter designed for bridge sensors. The XTR106UA provides complete bridge excitation (2.5V or 5V reference), instrumentation amplifier, sensor linearization, and current output circuitry. Current for powering additional external input circuitry is available from the VREG pin.The applications of the XTR106UA include pressure bridge transmitters, strain gage transmitters, temperature bridge transmitters, industrial process control, scada remote data acquisition, remote transducers, weighing systems and accelerometers.
Parametrics
XTR106UA absolute maximum ratings: (1)Power Supply, V+ (referenced to IO pin): 40V; (2)Input Voltage, VIN, VIN (referenced to IRET pin): 0V to V+; (3)Storage Temperature Range: –55°C to +125℃; (4)Lead Temperature (soldering, 10s): +300℃; (5)Output Current Limit: Continuous; (6)Junction Temperature: +165℃.
Features
XTR106UA features: (1)low total unadjusted error; (2)2.5V, 5V bridge excitation reference; (3)5.1V regulator output; (4)low span drift: ±25ppm/℃ max; (5)low offset drift: 0.25μV/℃; (6)high PSR: 110dB min; (7)high CMR: 86dB min; (8)wide supply range: 7.5V to 36V; (9)14-pin DIP and SO-14 surface-mount.

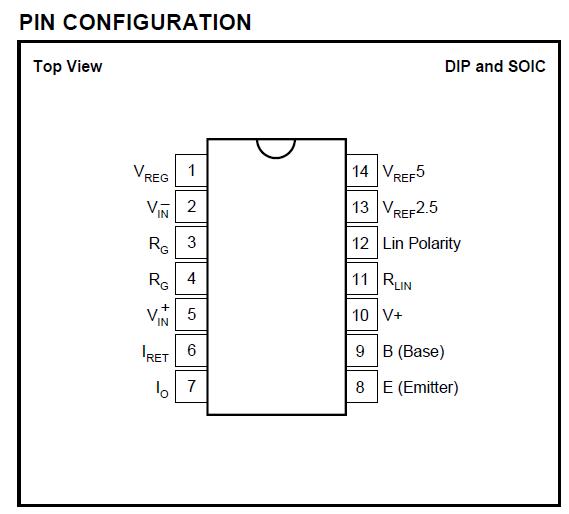

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XTR106UA |
Texas Instruments |
Current Sense Amplifiers 4-20mA Crnt Trnsmtr w/Bridger Exc & Lin |
Data Sheet |
|
|
||||||||||||
|
XTR106UA/2K5 |
Texas Instruments |
Current Sense Amplifiers 4-20mA Crnt Trnsmtr w/Bridger Exc & Lin |
Data Sheet |
|
|
||||||||||||
|
XTR106UAG4 |
Texas Instruments |
Current Sense Amplifiers 4-20mA Crnt Trnsmtr w/Bridger Exc & Lin |
Data Sheet |
|
|
||||||||||||
|
XTR106UA/2K5E4 |
Texas Instruments |
Current Sense Amplifiers 4-20mA Crnt Trnsmtr w/Bridger Exc & Lin |
Data Sheet |
|
|
||||||||||||
