Product Summary

The OPA131UAG4 is a general-purpose FET-input operational amplifier. It provides high performance at low cost. Single, dual, and quad versions in industry-standard pinouts allow cost-effective design options. The OPA131UAG4 offers excellent general-purpose perfor- mance, including low offset voltage, drift, and good dynamic characteristics. Single, dual, and quad versions are available in DIP and SO packages. Performance grades include commercial and in-dustrial temperature ranges.

Parametrics

OPA131UAG4 absolute maximum ratings: (1)Supply Voltage, V+ to V–: 36V; (2)Input Voltage: (V–) – 0.7V to (V+) + 0.7V; (3)Output Short-Circuit: Continuous; (4)Operating Temperature: –55 to +125℃; (5)Storage Temperature:–55 to +125℃; (6)Junction Temperature: 150℃; (7)Lead Temperature (soldering, 10s): 300℃.

Features

OPA131UAG4 features: (1)fet input: IB = 50pA max; (2)low offset voltage: 750μV max; (3)wide supply range: ±4.5V to ±18V; (4)slew rate: 10V/μs; (5)wide bandwidth: 4MHz; (6)excellent capacitive load drive; (7)single, dual, quad versions.

Diagrams

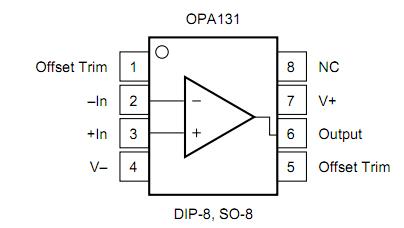

OPA131UAG4 pin configuration
