MAX756CSA+T

CMOS step-up DC-DC switching regulator, SOP-8, 727mW, 60μA Quiescent Current, Low-Battery Detector

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.23~2.38 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.23~2.38

PartNumber:: MAX756CSA+T

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jenny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-07

From Other Seller

Part Number:MAX756CSA+T
US $2.23 - 2.38
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

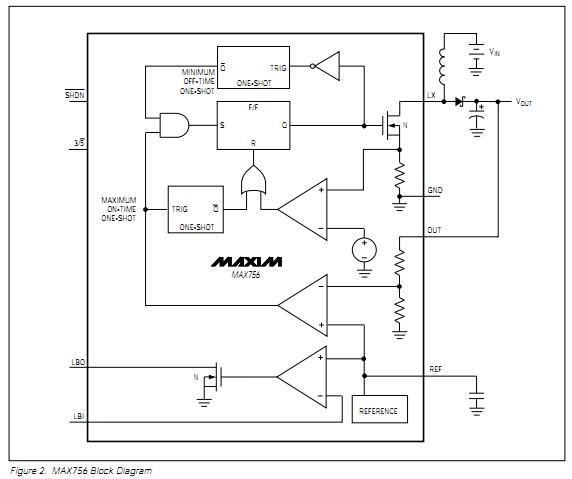

The MAX756CSA+T is a CMOS step-up DC-DC switching regulator for small, low input voltage or battery-powered systems. The MAX756CSA+T accepts a positive input voltage down to 0.7V and converts it to a higher pin-selectable output voltage of 3.3V or 5V. Typical full-load efficiencies for the MAX756CSA+T are greater than 87%. The applications of the MAX756CSA+T include 3.3V to 5V Step-Up Conversion, Palmtop Computers, Portable Data-Collection Equipment, Personal Data Communicators/Computers, Medical Instrumentation and 2-Cell & 3-Cell Battery-Operated Equipment Glucose Meters.

Parametrics

MAX756CSA+T absolute maximum ratings: (1)Supply Voltage (OUT to GND): -0.3V, +7V; (2)Switch Voltage (LX to GND): -0.3V, +7V; (3)Auxiliary Pin Voltages (SHDN, LBI, LBO, REF, 3/5, FB to GND): -0.3V, (VOUT + 0.3V); (4)Reference Current (IREF): 2.5mA; (5)Continuous Power Dissipation: 727mW; (6)Operating Temperature Ranges: 0 to +70℃; (7)Junction Temperature: +150℃; (8)Storage Temperature Range: -65 to +160℃; (9)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX756CSA+T features: (1)Operates Down to 0.7V Input Supply Voltage; (2)87% Efficiency at 200mA; (3)60μA Quiescent Current; (4)20μA Shutdown Mode with Active Reference and LBI Detector; (5)500kHz Maximum Switching Frequency; (6)±1.5% Reference Tolerance Over Temperature; (7)Low-Battery Detector (LBI/LBO); (8)8-Pin DIP and SO Packages.
