Product Summary
The MAX4420ESA+T is a single-output MOSFET driver. It is designed to translate TTL/CMOS inputs to high-voltage/high-current outputs. The MAX4420ESA+T interface easily with either CMOS or bipolar switch-mode controller beacuse its logic input draw under 10μA. The device has a non inverting output. The applications of the MAX4420ESA+T are switching power supplies, DC-DC converters, motor controllers, pin-diode drivers.
Parametrics
MAX4420ESA+T absolute maximum ratings: (1)supply voltage VDD to GND: +20V; (2)input voltage VIN: -0.3V to VDD+0.3V; (3)continuous power dissipation: 471mW; (4)operating temperature ranges: -40℃ to +85℃; (5)storage temperature range: -65℃ to +160℃; (6)lead temperature: +300℃.
Features
MAX4420ESA+T features: (1)TTL/CMOS compatible; (2)4.5V to 18V supply range; (3)1.5Ω output resistance; (4)6A peak output current; (5)40ns delay time; (6)25ns rise and fall times; (7)output swings to within 25mV of VDD and GND.

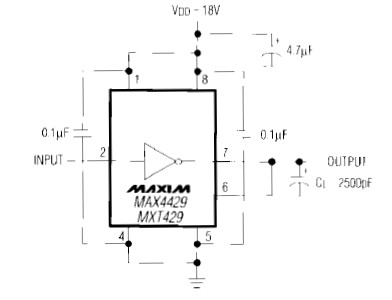

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX4420ESA+T |
Maxim Integrated Products |
Power Driver ICs 6A MOSFET Driver (Noninverting) |
Data Sheet |
|
|
||||||||||||
