TLC27L9CDR

Product Summary

The TLC27L9CDR quad operational amplifier combines a wide range of input offset voltage grades with low offset voltage drift, high input impedance, extremely low power, and high gain. The TLC27L9CDR uses Texas instruments silicon-gate LinCMOSE technology, which provides offset voltage stability far exceeding the stability available with conventional metal-gate processes. The TLC27L9CDR incorporates internal ESD-protection circuits that prevent functional failures at voltages up to 2000 V as tested under MIL-STD-883C, Method 3015.2; however, care should be exercised in handling these devices, as exposure to ESD may result in the degradation of the device parametric performance. The C-suffix devices are characterized for operation from 0℃ to 70℃. The I-suffix TLC27L9CDR is characterized for operation from -40℃ to 85℃. The M-suffix devices are characterized for operation from -55℃ to 125℃.

Parametrics

TLC27L9CDR absolute maximum ratings: (1)Supply voltage, VDD: 18 V; (2)Differential input voltage, VID: ±VDD; (3)Input voltage range, VI : -0.3 V to VDD; (4)Input current, II: ±5 mA; (5)Output current, IO (each output): ±30 mA; (6)Total current into VDD: 45 mA; (7)Total current out of GND: 45 mA; (8)Duration of short-circuit current at (or below) 25℃ : unlimited; (9)Continuous total dissipation: See Dissipation Rating Table; (10)Operating free-air temperature, TA: C suffix: 0℃ to 70℃; I suffix: -40℃ to 85℃; M suffix: -55℃ to 125℃; (11)Storage temperature range: -65℃ to 150℃; (12)Case temperature for 60 seconds: FK package: 260℃; (13)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D, N, or PW package: 260℃; (14)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: J package: 300℃.

Features

TLC27L9CDR features: (1)Trimmed Offset Voltage: TLC27L9, 900 μV Max at 25℃,; (2)VDD = 5 V; (3)Input Offset Voltage Drift: Typically 0.1 mV/Month, Including the First 30 Days; (4)Wide Range of Supply Voltages Over Specified Temperature Range: 0℃ to 70℃: 3 V to 16 V; -40℃ to 85℃: 4 V to 16 V;; (5)-55℃ to 125℃: 4 V to 16 V; (6)Single-Supply Operation; (7)Common-Mode Input Voltage Range Extends Below the Negative Rail (C-Suffix, I-Suffix Types); (8)Ultra-Low Power: Typically 195 mW at 25℃, VDD = 5 V; (9)Output Voltage Range includes Negative Rail; (10)High Input Impedance: 1012 W Typ; (11)ESD-Protection Circuitry; (12)Small-Outline Package Option Also Available in Tape and Reel; (13)Designed-In Latch-Up Immunity.

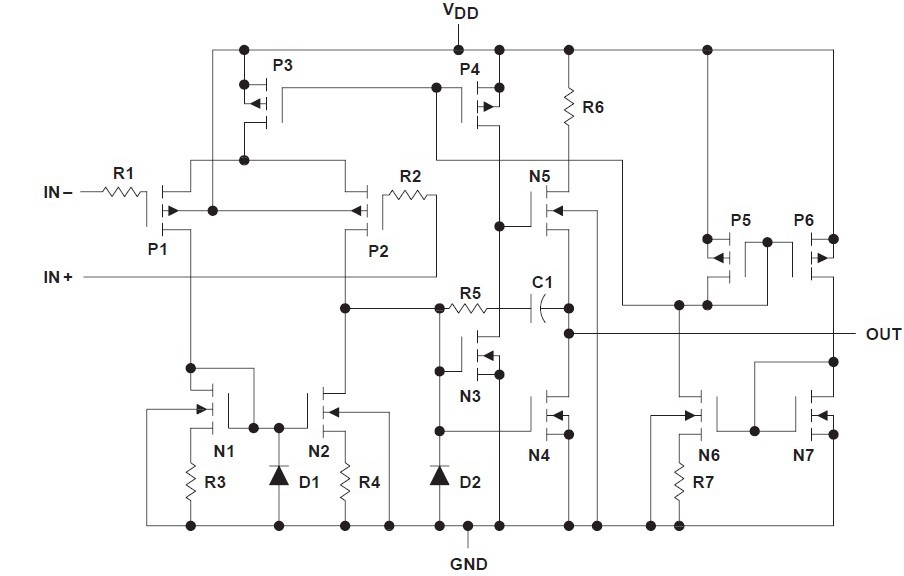

Diagrams
