INA148UA/2K5G4

unity-gain difference amplifier, 8SOIC, 100kHz, 13mA, 2.7 V ~ 36 V, RoHS Compliant

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.62~2.86 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.62~2.86

PartNumber:: INA148UA/2K5G4

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jenny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-05

From Other Seller

Part Number:INA148UA/2K5G4
US $2.62 - 2.86
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

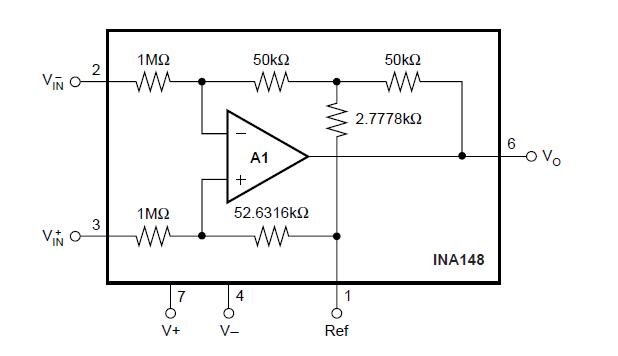

The INA148UA/2K5G4 is a precision, low-power, unity-gain difference amplifier with a high common-mode input voltage range. It consists of a monolithic precision bipolar op amp with a thin-film resistor network. The applications of the INA148UA/2K5G4 include current shunt measurements, differential sensor amplifiers, line receivers, battery powered systems, automotive instrumentation and stacked cell monitors.

Parametrics

INA148UA/2K5G42 absolute maximum ratings: (1)Supply Voltage, V+ to V–: 36V; (2)Signal Input Terminals, Continuous: ±200V; Peak (0.1s): ±500V; (3)Output Short Circuit to GND Duration: Continuous; (4)Operating Temperature: –55 to +125℃; (5)Storage Temperature: –55 to +125℃; (6)Junction Temperature: +150℃; (7)Lead Temperature (soldering, 10s): +300℃.

Features

INA148UA/2K5G4 features: (1)high common-mode voltage: +75V at VS = +5V; ±200V at VS = ±15V; (2)fixed differential gain = 1V/V; (3)low quiescent current: 260mA; (4)wide supply range: Single Supply: 2.7V to 36V; Dual Supplies: ±1.35V to ±18V; (5)low gain error: 0.075% max; (6)low nonlinearity: 0.002% max; (7)high CMR: 86dB; (8)SO-8 package.
