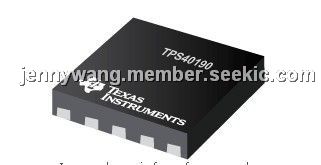

TPS40190DRCRG4

10-SON, –0.3 to 16.5V, synchronous buck controller, 300 kHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.74~0.79 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.74~0.79

PartNumber:: TPS40190DRCRG4

Brand:: Texas Instruments - TI | Pack: SON | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jenny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-06

From Other Seller

Part Number:TPS40190DRCRG4
US $0.74 - 0.79
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

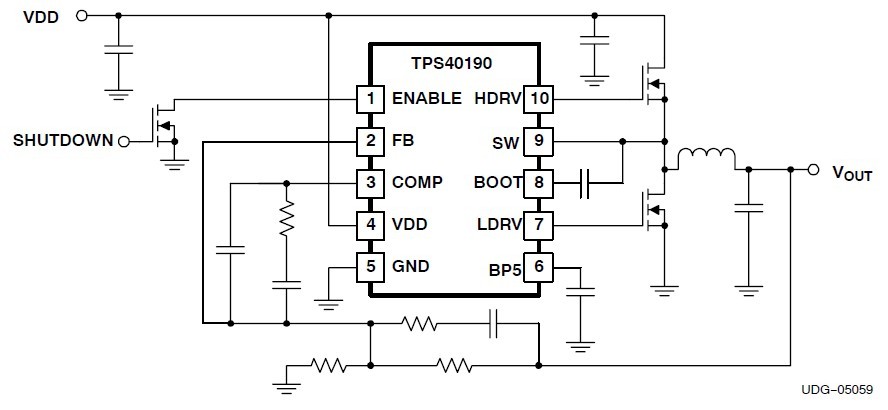

The TPS40190DRCRG4 is a cost-optimized synchronous buck controller that operates from 4.5 V to 15 V nominally, and implements a fixed frequency voltage mode power supply. The controller uses an adaptive anti-cross conduction scheme to prevent both the high-side and the rectifier MOSFET to be turned on at the same time, preventing shoot through current in the two MOSFETs. The TPS40190DRCRG4 provides strong drivers to minimize switching losses in the power stage, reducing heat build up in the MOSFETs and allowing larger MOSFETs to be used without undue switching time penalty. The applications of TPS40190DRCRG4 are: (1)Cable modem CPE; (2)Digital Set Top Box; (3)Graphics/Audio Cards; (4)Entry-level and Mid-Range Servers.

Parametrics

TPS40190DRCRG4 absolute maximum ratings: (1)VDD: –0.3 to 16.5V; (2)SW: –5 to 22V; (3)BOOST-SW, HDRV-SW (differential from BOOST or HDRV to V VDD Input voltage range SW): –0.3 to 6V; (4)COMP: –0.3 to 3V; (5)FB, BP5, LDRV, ENABLE: –0.3 to 6V; (6)TJ Operating junction temperature range: –40 to 125℃; (7)Tstg Storage temperature: –55 to 150℃.

Features

TPS40190DRCRG4 features: (1)Input Operating Voltage Range: 4.5 V to 15 V; (2)Reference 0.591 V ±1%; (3)Voltage Mode Control; (4)Pre-Bias Ouput Safe; (5)Fixed Switching Frequency of 300 kHz; (6)Small 3 mm 3 mm, 10-Pin SON Package; (7)Bootstrapped Drivers for N-Channel MOSFET; (8)Adaptive Anti-Cross Conduction; (9)Internal Bootstrap Diode; (10)1.2-A Drivers for Decreased Switching Loss.
