Product Summary

The TLV70033DSER is a low-dropout (LDO) linear regulator. It is a low quiescent current device with excellent line and load transient performance. The TLV70033DSER is designed for power-sensitive applications. A precision bandgap and error amplifier provides overall 2% accuracy. Low output noise, very high power-supply rejection ratio (PSRR), and low dropout voltage make it ideal for most battery-operated handheld equipment. The applications of the TLV70033DSER include: (1)Wireless Handsets; (2)Smart Phones, PDAs; (3)MP3 Players; (4)ZigBee Networks; (5)Bluetooth Devices; (6)Li-Ion Operated Handheld Products; (7)WLAN and Other PC Add-on Cards.

Parametrics

TLV70033DSER absolute maximum ratings: (1)Input voltage range, VIN: –0.3 to +6.0 V; (2)Enable voltage range, VEN: –0.3 to +6.0 V; (3)Output voltage range, VOUT: –0.3 to +6.0 V; (4)Maximum output current, IOUT: Internally limited; (5)Output short-circuit duration: Indefinite; (6)ESD rating Human body model (HBM): 2 kV; Charged device model (CDM): 500 V; (7)Operating junction temperature range, TJ: –55 to +150 ℃; (8)Storage temperature range, TSTG: –55 to +150 ℃.

Features

TLV70033DSER features: (1)Very Low Dropout; (2)2% Accuracy; (3)Low IQ: 31 μA; (4)Available in Fixed-Output Voltages from 0.7 V to 4.8 V; (5)High PSRR: 68 dB at 1 kHz; (6)Stable with Effective Capacitance of 0.1 μF; (7)Thermal Shutdown and Overcurrent Protection; (8)Available in 1,5-mm × 1,5-mm SON-6, SOT23-5, and SC-70 packages.

Diagrams

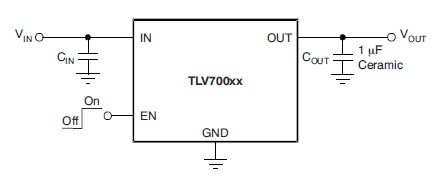

TLV70033DSER diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLV70033DSER
TLV70033DSER
Texas Instruments
Low Dropout (LDO) Regulators 200mA Low IQ LDO Reg
