Product Summary

The TLC4501IDR is the highest precision CMOS single supply rail-to-rail operational amplifiers available today. The input offset voltage is 10 mV typical and 40 mV maximum. The TLC4501IDR exceptional precision, combined with a 4.7-MHz bandwidth, 2.5-V/ms slew rate, and 50-mA output drive, is ideal for multiple applications including: data acquisition systems, measurement equipment, industrial control applications, and portable digital scales.

Parametrics

TLC4501IDR absolute maximum ratings: (1)Supply voltage, VDD+: 7 V; (2)Differential input voltage, VID: ±7 V; (3)Input voltage range, VI: -0.3 V to 7 V; (4)Input current, II (each input): ±5 mA; (5)Output current, IO (each output): ±100 mA; (6)Total current into VDD+: ±100 mA; (7)Total current out of VDD-/GND: ±100 mA; (8)Electrostatic discharge (ESD): > 2 kV; (9)Duration of short-circuit current at (or below) 25℃: unlimited; (10)Continuous total power dissipation: See Dissipation Rating Table; (11)Storage temperature range, Tstg: -65℃ to 150℃; (12)Case temperature for 60 seconds, TC: FK package: 260℃; (13)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TLC4501IDR features: (1)Self-Calibrates Input Offset Voltage to 40 mV Max; (2)Low Input Offset Voltage Drift: 1 mV/℃; (3)Input Bias Current: 1 pA; (4)Open Loop Gain: 120 dB; (5)Rail-To-Rail Output Voltage Swing; (6)Stable Driving 1000 pF Capacitive Loads; (7)Gain Bandwidth Product: 4.7 MHz; (8)Slew Rate: 2.5 V/ms; (9)High Output Drive Capability: ±50 mA; (10)Calibration Time: 300 ms; (11)Characterized From: -55℃ to 125℃.

Diagrams

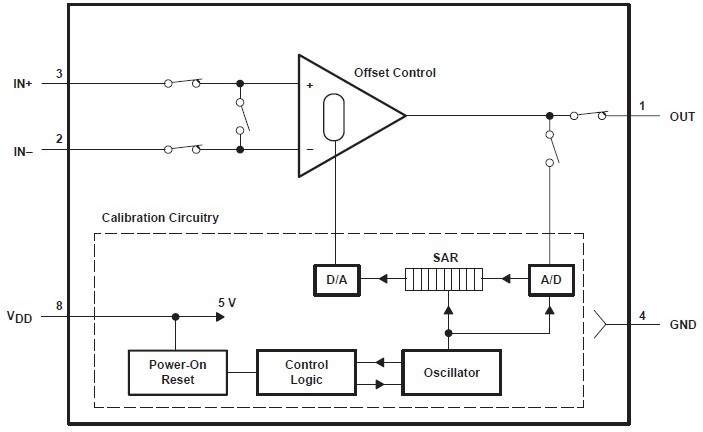

TLC4501IDR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLC4501IDR
TLC4501IDR
Texas Instruments
Operational Amplifiers - Op Amps Adv LinEPIC Self-Cal Precision Single
Data Sheet
0-1850: $1.31
1850-2000: $1.27
2000-2500: $1.27
2500-5000: $1.20
TLC4501IDRG4
TLC4501IDRG4
Texas Instruments
Operational Amplifiers - Op Amps Adv LinEPIC Self-Cal Precision Single
Data Sheet
0-1850: $1.31
1850-2000: $1.27
2000-2500: $1.27
2500-5000: $1.21
