Product Summary
The TLC2652I-8DR is a high-precision chopper-stabilized operational amplifier. It uses Texas Instruments Advanced LinCMOSE process. This process in conjunction with unique chopper-stabilization circuitry produces opera tional amplifiers whose performance matches or exceeds that of similar devices available today. The TLC2652I-8DR input common-mode range includes the negative rail, thereby providing superior performance in either single-supply or split-supply applications, even at power supply voltage levels as low as ±1.9 V.
Parametrics
TLC2652I-8DR absolute maximum ratings: (1)Supply voltage VDD+: 8 V; (2)Supply voltage VDD–: –8 V; (3)Differential input voltage, VID: ±16 V; (4)Input voltage, VI (any input): ±8 V; (5)Voltage range on CLK IN and INT/EXT: VDD – to VDD– + 5.2 V; (6)Input current, II (each input): ±5 mA; (7)Output current, IO: ±50 mA; (8)Current into CLK IN and INT/EXT: ±5 mA; (9)Storage temperature range:–65℃ to 150℃; (10)Case temperature for 60 seconds: FK package: 260℃; (11)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D, N, or P package: 260℃; (12)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: J or JG package: 300℃.
Features
TLC2652I-8DR features: (1)Extremely Low Offset Voltage: 1 μV Max; (2)Extremely Low Change on Offset Voltage With Temperature: 0.003 μV/℃ Typ; (3)Low Input Offset Current: 500 pA Max at TA = – 55℃ to 125℃; (4)AVD: 135 dB Min; (5)CMRR and kSVR: 120 dB Min; (6)Single-Supply Operation; (7)Common-Mode Input Voltage Range Includes the Negative Rail; (8)No Noise Degradation With External Capacitors Connected to VDD–.

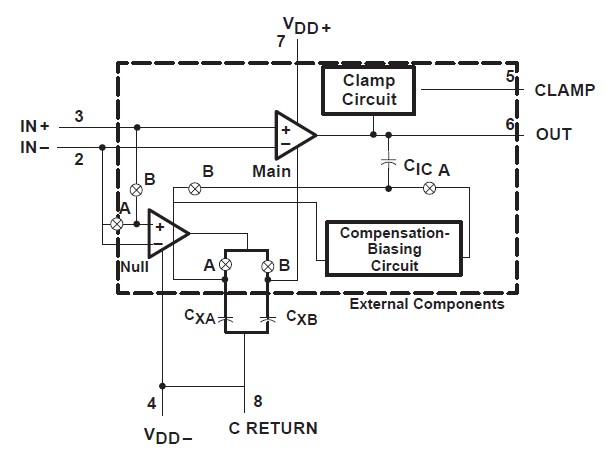

Diagrams
