Product Summary
The PTR08060WVD is a highly integrated, low-cost switching regulator module that delivers up to 6 A of output current. Occupying approximate PCB area of a standard TO-220 linear regulator IC, the PTR08060WVD provides output current at a much higher efficiency and with much less power dissipation, thereby eliminating the need for a heat sink. Their small size (0.65 x 0.41 in), high efficiency, and low cost makes these modules attractive for a variety of applications. The input voltage range of the PTR08060WVD is from 4.5 V to 14 V, allowing operation from either a 5-V or 12-Vinput bus. Using state-of-the-art switched-mode power-conversion technology, the PTR08060WVD can step down to voltages as low as 0.6 V. Operating features of it include an undervoltage lockout (UVLO), on/off inhibit and output overcurrent protection. Target applications of the PTR08060WVD include servers, test and measurement applications, and high-end consumer products.
Parametrics
PTR08060WVD absolute maximum ratings: (1)TA, Operating free-air temperature, Over VI range: -40 to 85℃; (2)Twave, Wave solder temperature, Surface temperature of module body or pins wave (5 seconds maximum): 260℃; (3)Tstg, Storage temperature: -55 to 125℃.
Features
PTR08060WVD features: (1)Up to 6A Output Current; (2)Wide Input Voltage Range (4.5 V to 14 V); (3)Wide-Output Voltage Adjust (0.6 V to 5.5 V); (4)Efficiencies Up To 96%; (5)ON/OFF Inhibit; (6)Undervoltage Lockout (UVLO); (7)Output Overcurrent Protection (Nonlatching, Auto-Reset); (8)Overtemperature Protection; (9)Ambient Temp. Range: –40 to 85℃; (10)Space Saving Vertical SIP Package.

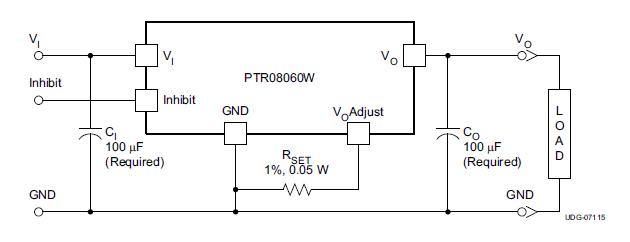

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PTR08060WVD |
Texas Instruments |
DC/DC Converters 6-A 4.5V-14V Input Non-Iso Adj Pwr Mod |
Data Sheet |
|
|
||||||||||||
