Product Summary

The OPA2677U/2K5G4 is an operational amplifier. It provides the high output current and low distortion required in emerging ADSL and HDSL2 driver applications. Operating on a single +12V supply, the OPA2677U/2K5G4 consumes a low 9mA/chan quiescent current to deliver a very high 500mA peak output current. Guaranteed output current supports even the most demanding ADSL CPE requirements with > 380mA minimum output current with low harmonic distortion. Differential driver applications of the OPA2677U/2K5G4 will deliver < –85dBc distortion at the peak upstream power levels of full rate ADSL. The high 200MHz bandwidth of the OPA2677U/2K5G4 will also support the most demanding VDSL line driver requirements. The applications of the OPA2677U/2K5G4 include xdsl line driver, cable modem driver, matched i/q channel amplifier, broadband video line driver, arb line driver and performance upgrade to AD8017.

Parametrics

OPA2677U/2K5G4 absolute maximum ratings: (1)Power Supply: ±6.5VDC; (2)Internal Power Dissipation: See Thermal Information; (3)Differential Input Voltage: ±1.2V; (4)Input Voltage Range: ±VS; (5)Storage Temperature Range: U, N, H: –40℃ to +125℃; (6)Lead Temperature (soldering, 10s): +300℃; (7)Junction Temperature (TJ ): +175℃.

Features

OPA2677U/2K5G4 features: (1)wideband +12v operation: 200MHz (G = +4); (2)unity gain stable: 220MHz (G = 1); (3)high output current: 500mA; (4)output voltage swing: ±5V; (5)high slew rate: 1800V/ms; (6)low supply current: 18mA; (7)flexible power control.

Diagrams

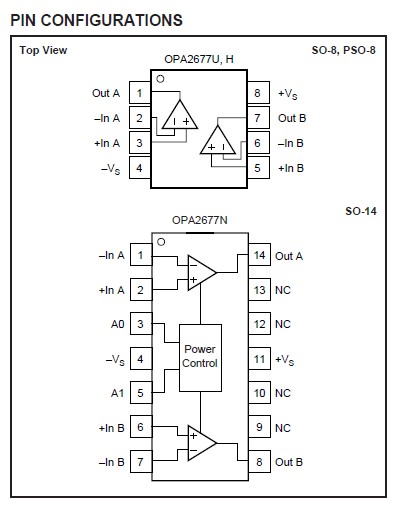

OPA2677U/2K5G4 pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
OPA2677U/2K5G4
OPA2677U/2K5G4
Texas Instruments
High Speed Operational Amplifiers Dual Wideband High Output Current
Data Sheet
0-1860: $1.02
1860-2000: $0.94
2000-2500: $0.94
