Product Summary

The TPS5410DR is a SWIFT Converter.

Parametrics

TPS5410DR absolute maximum ratings: (1)VIN: –0.3 to 40V; (2)BOOT: –0.3 to 50V; (3)PH (steady-state): –0.6 to 40V; (4)VI Input voltage range EN: –0.3 to 7 V; (5)VSENSE: –0.3 to 3V; (6)BOOT-PH: 10V; (7)PH (transient < 10 ns): –1.2; (8)IO Source current PH: Internally Limited; (9)Ilkg Leakage current PH: 10 μA; (10)TJ Operating virtual junction temperature range: –40 to 150 ℃; (11)Tstg Storage temperature: –65 to 150 ℃.

Features

TPS5410DR features: (1)VIN: 5.5 to 36V; (2)VOUT: 1.23 to 31V; (3)IOUT: 1 A; (4)Iq: 3mA; (5)switching frequency: 500kHZ; (6)package: 8SOIC.

Diagrams

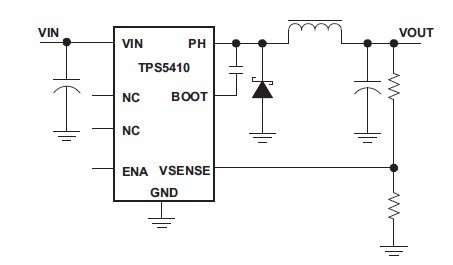

TPS5410DR Simplified Schematic
