Product Summary

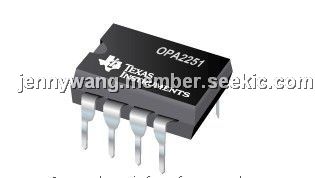

The OPA2251PAG4 is a single-supply, micropower operational amplifier specifically designed for battery powered, portable applications. In addition to very low power consumption (25mA), the amplifier features low offset voltage, rail-to-rail output swing, high common-mode rejection, and high open-loop gain. The OPA2251PAG4 is optimized for operation at low power supply voltage while the OPA251 series is optimized for high power supplies. The device can operate from either single (+2.7V to +36V) or dual supplies (±1.35V to ±18V). The input common-mode voltage range extends 200mV below the negative supply-ideal for single-supply applications. The OPA2251PAG4 is unity-gain stable and can drive large capacitive loads. Special design considerations assure that the product is easy to use. High performance is maintained as the amplifiers swing to their specified limits. The applications of the OPA2251PAG4 include battery operated instruments, portable devices, medical instruments and test equipment.
Parametrics
OPA2251PAG4 absolute maximum ratings: (1)Supply Voltage, V+ to V–: 36V; (2)Input Voltage: (V–) –0.5V to (V+) +0.5V; (3)Output Short Circuit to Ground: Continuous; (4)Operating Temperature: –55℃ to +125℃; (5)Storage Temperature: –55℃ to +125℃; (6)Junction Temperature: 150℃; (7)Lead Temperature (soldering, 10s): 300℃.
Features
OPA2251PAG4 features: (1)MicroPOWER: IQ = 25uA; (2)single-supply operation; (3)rail-to-rail output (within 50mV); (4)wide supply range: Single Supply: +2.7V to +36V; dual Supply: ±1.35V to ±18V; (5)low offset voltage: ±250mV max; (6)high common-mode rejection: 124dB; (7)high open-loop gain: 128dB; (8)single, dual, and quad.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OPA2251PAG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Single-Supply MicroPower Oper Amp |
Data Sheet |
|
|
|||||||||||||||
