Product Summary
The OPA2234UA/2K5G4 is a low-power, precision single-supply operational amplifier. The device is ideal for single-supply, low-voltage, low-power applications. The OPA2234UA/2K5G4 provides lower quiescent current than older 1013-type products and comes in current industry- standard packages and pinouts. The combination of low offset voltage, high common-mode rejection, high power-supply rejection, and a wide supply range provides excellent accuracy and versatility. Single, dual, and quad versions have identical specifications for maximum design flexibility. The OPA2234UA/2K5G4 is ideal for portable and battery-powered applications.
Parametrics
OPA2234UA/2K5G4 absolute maximum ratings: (1)Supply Voltage, V+ to V–: 36V; (2)Input Voltage: (V–) –0.7V to (V+) +0.7V; (3)Output Short-Circuit: Continuous; (4)Operating Temperature:–40℃ to +125℃; (5)Storage Temperature:–55℃ to +125℃; (6)Junction Temperature: 150℃; (7)Lead Temperature (soldering, 10s): 300℃.
Features
OPA2234UA/2K5G4 features: (1)wide supply range: Single Supply: VS = +2.7V to +36V; Dual Supply: VS = ±1.35V to ±18V; (2)specified performance: +2.7V, +5V, and ±15V; (3)low quiescent current: 250μA/amp; (4)low input bias current: 25nA max; (5)low offset voltage: 100μV max; (6)high CMRR, PSRR, and AOL; (7)single, dual, and quad versions.

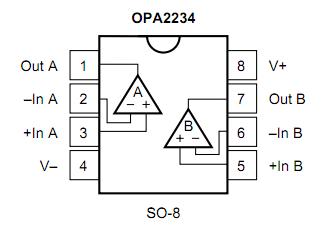

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OPA2234UA/2K5G4 |
Texas Instruments |
Operational Amplifiers - Op Amps Low Power Prec Sngl-Sply Oper Amp |
Data Sheet |
|
|
|||||||||||||||
