DAC1220E

20-bit, digital-to-analog (D/A) converter, SSOP-16, low power 2.5mW, ±0.3V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.67~7.14 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.67~7.14

PartNumber:: DAC1220E

Brand:: Texas Instruments - TI | Pack: SSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jenny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-29

From Other Seller

Part Number:DAC1220E
US $6.67 - 7.14
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
QM75DY-H

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

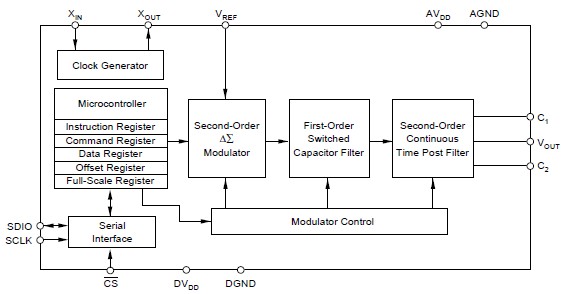

The DAC1220E is a 20-bit digital-to-analog (D/A) converter offering 20-bit monotonic performance over the specified temperature range. It utilizes delta-sigma technology to achieve inherently linear performance in a small package at very-low power. The resolution of the DAC1220E can be programmed to 20 bits for fullscale, settling to 0.003% within 15ms typical, or 16 bits for full-scale, settling to 0.012% within 2ms max. The output range is two times the external reference voltage. On-chip calibration circuitry of the DAC1220E dramatically reduces low offset and gain errors. The DAC1220E features a synchronous serial interface. In single-converter applications, the serial interface can be accomplished with just two wires, allowing low-cost isolation. For multiple converters, a CS signal allows for selection of the appropriate D/A converter.

Parametrics

DAC1220E absolute maximum ratings: (1)AVDD to DVDD: ±0.3V; (2)AVDD to AGND: –0.3V to 6V; (3)DVDD to DGND: –0.3V to 6V; (4)AGND to DGND: ±0.3V; (5)VREF Voltage to AGND: 2.0V to 3.0V; (6)Digital Input Voltage to DGND: –0.3V to DVDD + 0.3V; (7)Digital Output Voltage to DGND: –0.3V to DVDD + 0.3V; (8)Package Power Dissipation: (TJMAX – TA)/qJA; (9)Maximum Junction Temperature (TJMAX): +150℃; (10)Thermal Resistance, θJA,SSOP-16: 200℃/W; (11)Lead Temperature (soldering, 10s): +300℃.

Features

DAC1220E features: (1)20-bit monotonicity guaranteed over –40℃ to +85℃; (2)low power: 2.5mW; (3)voltage output; (4)settling time: 2ms to 0.012%; (5)max linearity error: ±0.0015%; (6)on-chip calibration.
