Product Summary
The OPA137NA FET-input operational amplifier is designed for low cost and miniature applications. In addition to small size (SOT-23-5 and MSOP-8 packages), the OPA137NA provides low input bias current (5pA), low quiescent currrent (220μA/channel), and high open-loop gain (94dB). Either single (+4.5V to +36V) or dual (±2.25 to ±18V) supplies can be used. The input common-mode voltage range of the OPA137NA includes the positive supply—suitable for many single-supply applications. Single, dual, and quad versions have identical specifications for maximum design flexibility. The applications of the OPA137NA include (1)strain gage amplifier; (2)photodetector amplifier; (3)precision integrator; (4)battery-powered instruments; (5)test equipment; (6)active filters.
Parametrics
OPA137NA absolute maximum ratings: (1)Supply Voltage, V+ to V–: 36V; (2)Input Voltage: (V–) –0.7V to (V+) +0.7V; (3)Input Current: 2mA; (4)Output Short-Circuit: Continuous; (5)Operating Temperature: –55℃ to +125℃; (6)Storage Temperature: –55℃ to +125℃; (7)Junction Temperature: +150℃; (8)Lead Temperature (soldering, 10s): 300℃.
Features
OPA137NA features: (1)fet input: IB = 5pA; (2)low offset voltage: 1.5mV; (3)wide supply range: ±2.25V to ±18V; (4)low quiescent current: 220μA/channel; (5)excellent speed/power: 1MHz; (6)input to positive supply; (7)microsize packages: SOT-23-5, MSOP-8; (8)single, dual, and quad.

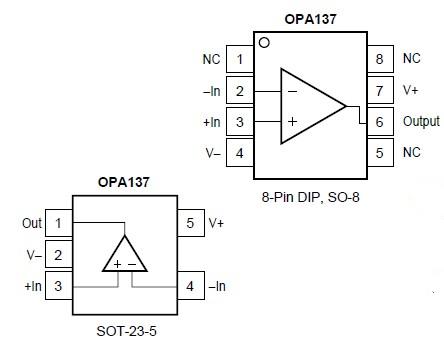

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OPA137NA/250 |
Texas Instruments |
Operational Amplifiers - Op Amps Low Cost FET-Input Oper Amplifier |
Data Sheet |
|
|
||||||||||||
|
OPA137NA/250E4 |
Texas Instruments |
Operational Amplifiers - Op Amps Low Cost FET-Input Oper Amplifier |
Data Sheet |
|
|
||||||||||||
|
OPA137NA/3K |
Texas Instruments |
Operational Amplifiers - Op Amps Low Cost FET-Input Oper Amplifier |
Data Sheet |
|
|
||||||||||||
|
OPA137NA/3KE4 |
Texas Instruments |
Operational Amplifiers - Op Amps Low Cost FET-Input Oper Amplifier |
Data Sheet |
|
|
||||||||||||
