Product Summary

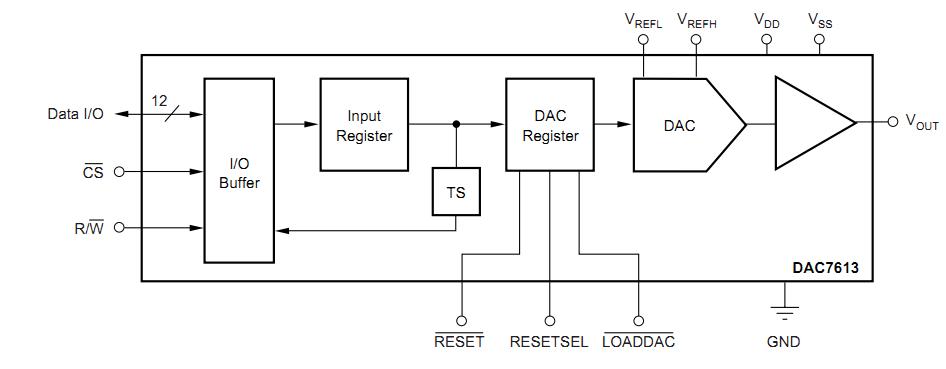

The DAC7613E/1KG4 is a 12-bit, voltage output digital-to-analog converter with guaranteed 12-bit monotonic performance over the specified temperature range. The DAC7613E/1KG4 accepts a 12-bit parallel input data, has double-buffered DAC input logic and provides a readback mode of the internal input register. An asynchronous reset clears all registers to a mid-scale code of 800H or to a zero-scale of 000H. The DAC7613E/1KG4 can operate from a single +5V supply or from +5V and –5V supplies. The applications of the DAC7613E/1KG4 include process control, closed-loop servo-control, motor control and data acquisition systems.

Parametrics

DAC7613E/1KG4 absolute maximum ratings: (1)VDD to VSS: –0.3V to 11V; (2)VDD to GND: –0.3V to 5.5V; (3)VREFL to VSS: –0.3V to (VDD – VSS); (4)VDD to VREFH: –0.3V to (VDD – VSS); (5)VREFH to VREFL: –0.3V to (VDD – VSS); (6)Digital Input Voltage to GND: –0.3V to VDD + 0.3V; (7)Digital Output Voltage to GND: –0.3V to VDD + 0.3V; (8)Maximum Junction Temperature: +150℃; (9)Operating Temperature Range: –40 to +85℃; (10)Storage Temperature Range: –65 to +150℃; (11)Lead Temperature (soldering, 10s): +300℃.

Features

DAC7613E/1KG4 features: (1)low power: 1.8mW; (2)unipolar or bipolar operation; (3)settling time: 10μs to 0.012%; (4)12-bit linearity and monotonicity: –40 to +85℃; (5)data readback; (6)double-buffered data inputs; (7)24-lead SSOP package.
