Product Summary
The XTR110KU/1K is a precision voltage-to-current converter designed for analog signal transmission. It accepts inputs of 0 to 5V or 0 to 10V and can be connected for outputs of 4 to 20mA, 0 to 20mA, 5 to 25mA and many other commonly used ranges. A precision on-chip metal film resistor network provides input scaling and current offsetting. An internal 10V voltage reference can be used to drive external circuitry. The XTR110KU/1K is available in 16-pin plastic DIP, ceramic DIP and SOL-16 surface-mount packages. Commercial and industrial temperature range models are available.
Parametrics
XTR110KU/1K absolute maximum ratings: (1)Power Supply, +VCC: 40V; (2)Input Voltage, VIN1, VIN2, VREF IN: +VCC; (3)See text regarding safe negative input voltage range.; (4)Storage Temperature Range: A, B: -55℃ to +125℃; K, U: -40℃ to +85℃; (5)Lead Temperature (soldering, 10s) G, P: 300℃; (wave soldering, 3s) U : 260℃; (6)Output Short-Circuit Duration, Gate Drive; (7)and VREF Force: Continuous to common and +VCC; (8)Output Current Using Internal 50W Resistor: 40mA.
Features
XTR110KU/1K features: (1)4mA TO 20mA transmitter; (2)selectable input/output ranges: 0V to +5V, 0V to +10V Inputs; 0mA to 20mA, 5mA to 25mA Outputs; (3)Other Ranges; (4)0.005% max nonlinearity, 14 bit; (5)precision +10v reference output; (6)single supply operation; (7)wide supply range: 13.5V to 40V.

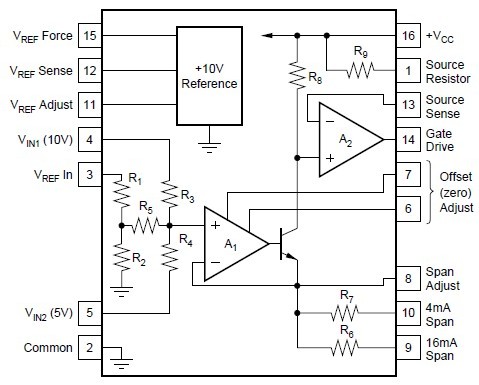

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XTR110KU/1K |
Texas Instruments |
Current Sense Amplifiers Prec Vltg-To-Crnt Cnertr/Trnsmtr |
Data Sheet |
|
|
||||||||
|
XTR110KU/1KG4 |
Texas Instruments |
Current Sense Amplifiers Prec Vltg-To-Crnt Cnertr/Trnsmtr |
Data Sheet |
|
|
||||||||
