Product Summary
The TPS7350QDR is a member of a family of micropower low-dropout (LDO) voltage regulators. It is differentiated from the TPS71xx and TPS72xx LDOs by their integrated delayed microprocessor-reset function. If the precision delayed reset is not required, the TPS71xx and TPS72xx should be considered. The TPS7350QDR is offered in 2.5-V, 3-V, 3.3-V, 4.85-V, and 5-V fixed-voltage versions and in an adjustable version (programmable over the range of 1.2 V to 9.75 V). Output voltage tolerance is specified as a maximum of 2% over line, load, and temperature ranges (3% for the 2.5 V and the adjustable version). The TPS7350QDR is available in PDIP (8 pin), SO (8 pin) and TSSOP (20 pin) packages. The TSSOP has a maximum height of 1.2 mm.
Parametrics
TPS7350QDR absolute maximum ratings: (1)Input voltage range, VI, RESET, SENSE, EN: -0.3 V to 11 V; (2)Output current, IO: 2 A; (3)Continuous total power dissipation: See Dissipation Rating Tables 1 and 2; (4)Operating virtual junction temperature range, TJ: -55℃ to 150℃; (5)Storage temperature range, Tstg: -65℃ to 150℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
TPS7350QDR features: (1)Available in 2.5-V, 3-V, 3.3-V, 4.85-V, and 5-V Fixed-Output and Adjustable Versions; (2)Integrated Precision Supply-Voltage Supervisor Monitoring Regulator Output Voltage; (3)Active-Low Reset Signal with 200-ms Pulse Width; (4)Very Low Dropout Voltage, Maximum of 35 mV at IO = 100 mA (TPS7350); (5)Low Quiescent Current-Independent of Load: 340 μA Typ; (6)Extremely Low Sleep-State Current, 0.5 μA Max; (7)2% Tolerance Over Full Range of Load, Line, and Temperature for Fixed-Output Versions; (8)Output Current Range of 0 mA to 500 mA; (9)TSSOP Package Option Offers Reduced Component Height For Critical Applications.

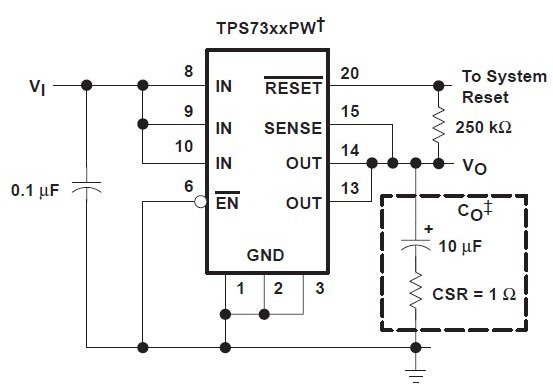

Diagrams
