Product Summary

The TLV70025DDCR low-dropout (LDO) linear regulator is a low quiescent current device with excellent line and load transient performance. The LDO is designed for power-sensitive applications. A precision bandgap and error amplifier provides overall 2% accuracy. Low output noise, very high power-supply rejection ratio (PSRR), and low dropout voltage make this series of devices ideal for most battery-operated handheld equipment. The TLV70025DDCR version has thermal shutdown and current limit for safety.

Parametrics

TLV70025DDCR absolute maximum ratings: (1)Input voltage range, VIN: –0.3 to +6.0 V; (2)Enable voltage range, VEN: –0.3 to +6.0 V; (3)Output voltage range, VOUT: –0.3 to +6.0 V; (4)Maximum output current, IOUT: Internally limited; (5)Output short-circuit duration: Indefinite; (6)Operating junction temperature range, TJ: –55 to +150 ℃; (7)Storage temperature range, TSTG: –55 to +150 ℃.

Features

TLV70025DDCR features: (1)Low IQ: 31 mA; (2)Available in Fixed-Output Voltages from 0.7 V to 4.8 V; (3)High PSRR: 68 dB at 1 kHz; (4)Stable with Effective Capacitance of 0.1 mF; (5)Thermal Shutdown and Overcurrent Protection; (6)Available in 1,5-mm × 1,5-mm SON-6, SOT23-5, and SC-70 packages.

Diagrams

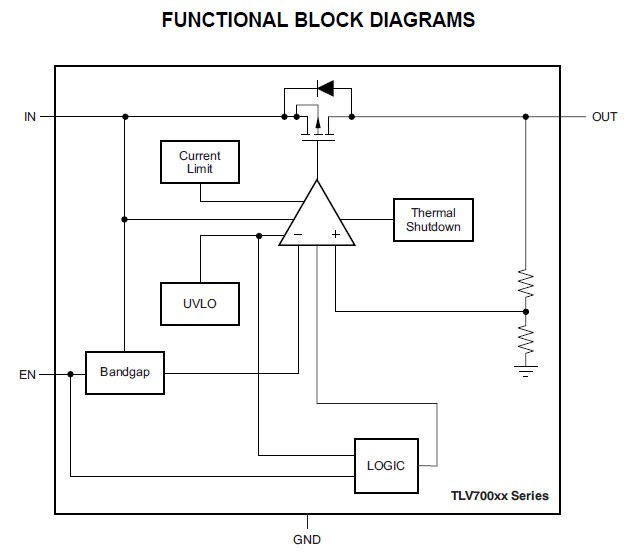

TLV70025DDCR functional block diagrams
