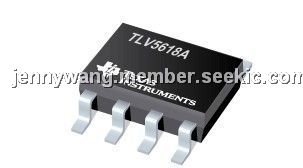

TLV5618AIDRG4

12-bit, voltage output DAC, 8-SOIC, 3 μs, 2.7V to 5.5V, Monotonic Over Temperature

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.05~4.44 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.05~4.44

PartNumber:: TLV5618AIDRG4

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jenny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-09

From Other Seller

Part Number:TLV5618AIDRG4
US $4.05 - 4.44
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

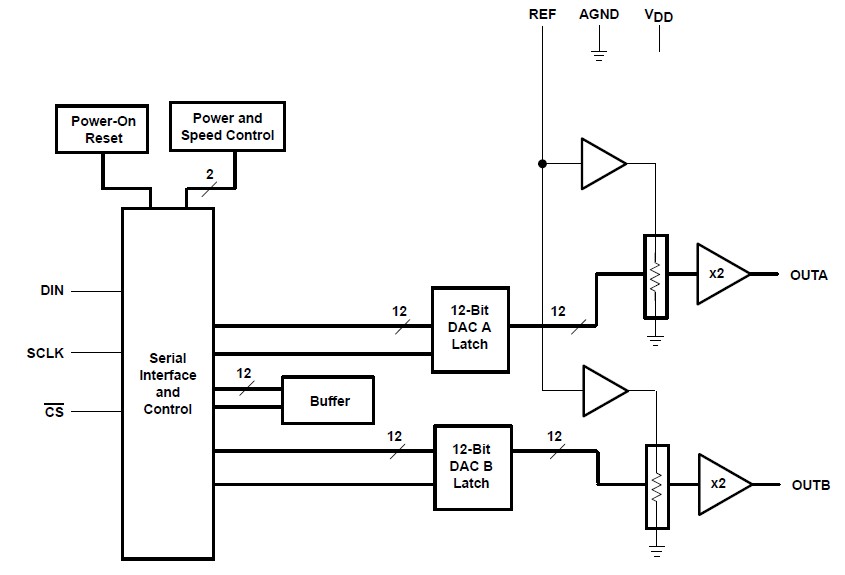

The TLV5618AIDRG4 is a dual 12-bit voltage output DAC with a flexible 3-wire serial interface. The serial interface is compatible with TMS320, SPI, QSPI, and Microwire serial ports. The TLV5618AIDRG4 is programmed with a 16-bit serial string containing 4 control and 12 data bits. The resistor string output voltage is buffered by an x2 gain rail-to-rail output buffer. The buffer features a Class-AB output stage to improve stability and reduce settling time. The applications of the TLV5618AIDRG4 include: Digital Servo Control Loops, Digital Offset and Gain Adjustment, Industrial Process Control, Machine and Motion Control Devices, Mass Storage Devices.

Parametrics

TLV5618AIDRG4 absolute maximum ratings: (1)Supply voltage (VDD to AGND): 7 V; (2)Reference input voltage range: – 0.3 V to VDD + 0.3 V; (3)Digital input voltage range: – 0.3 V to VDD + 0.3 V; (4)Operating free-air temperature range, TA: –40℃ to 85℃; (5)Storage temperature range, Tstg: –65℃ to 150℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TLV5618AIDRG4 features: (1)Dual 12-Bit Voltage Output DAC; (2)Programmable Settling Time: 3 μs in Fast Mode; 10 μs in Slow Mode; (3)Compatible With TMS320 and SPI Serial Ports; (4)Differential Nonlinearity <0.5 LSB Typ; (5)Monotonic Over Temperature; (6)Direct Replacement for TLC5618A (C and I Suffixes); (7)Available in Q-Temp Automotive; HighRel Automotive Applications; Configuration Control/Print Support; Qualification to Automotive Standards.
