Product Summary

The TLC5615CDR is a 10-bit voltage output digital-to-analog converter (DAC) with a buffered reference input (high impedance). The DAC has an output voltage range that is two times the reference voltage, and the DAC is monotonic. The TLC5615CDR is simple to use, running from a single supply of 5 V. A power-on-reset function is incorporated to ensure repeatable start-up conditions. The applications of the TLC5615CDR include: (1)Battery-Powered Test Instruments; (2)Digital Offset and Gain Adjustment; (3)Battery Operated/Remote Industrial Controls; (4)Machine and Motion Control Devices; (5)Cellular Telephones.

Parametrics

TLC5615CDR absolute maixmum ratings: (1)Supply voltage (VDD to AGND): 7 V; (2)Digital input voltage range to AGND: – 0.3 V to VDD + 0.3 V; (3)Reference input voltage range to AGND: – 0.3 V to VDD + 0.3 V; (4)Output voltage at OUT from external source: VDD + 0.3 V; (5)Continuous current at any terminal: ±20 mA; (6)Operating free-air temperature range, TA: TLC5615C: 0℃ to 70℃; (7)Storage temperature range, Tstg: –65℃ to 150℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TLC5615CDR features: (1)10-Bit CMOS Voltage Output DAC in an 8-Terminal Package; (2)5-V Single Supply Operation; (3)3-Wire Serial Interface; (4)High-Impedance Reference Inputs; (5)Voltage Output Range: 2 Times the Reference Input Voltage; (6)Internal Power-On Reset; (7)Low Power Consumption: 1.75 mW Max; (8)Update Rate of 1.21 MHz; (9)Settling Time to 0.5 LSB: 12.5 μs Typ; (10)Monotonic Over Temperature; (11)Pin Compatible With the Maxim MAX515.

Diagrams

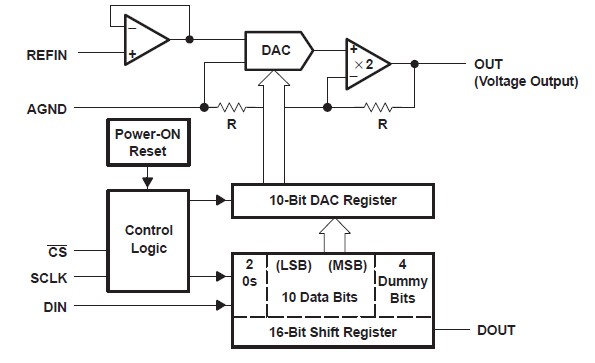

TLC5615CDR block diagram
