Product Summary
The PT5102A is an economical, easy-to-use 1-A positive step-down, Integrated Switching Regulator (ISR). The PT5102A is compatible with most TO-220 style linear regulators, and when employed as a linear replacement, provide significant benefits in both efficiency and power dissipation. The PT5102A is recommended for use in a wide variety of on-board power regulation applications. These include computer, data storage, industrial controls, and battery powered equipment. Modules are laser-trimmed for optimal output voltage accuracy, and exhibit excellent line and load regulation. The PT5102A also features output current limiting and thermal shutdown protection.
Parametrics
PT5102A absolute maximum ratings: (1)Voltage - Input: 16 ~ 38V; (2)Output: 12V; (3)Power (Watts): 12W; (4)Number of Outputs: 1; (5)Output - 1 @ Current (Max): 12 VDC @ 1A.
Features
PT5102A features: (1)90%+ Efficiency; (2)Internal Short-Circuit Protection; (3)Pin-Compatible with 3-Terminal Linear Regulators; (4)Laser-Trimmed Output Voltage; (5)Over-Temperature Protection; (6)Small Footprint; (7)Wide Input Range; (8)5-Pin Mount Option (Suffixes L & M).

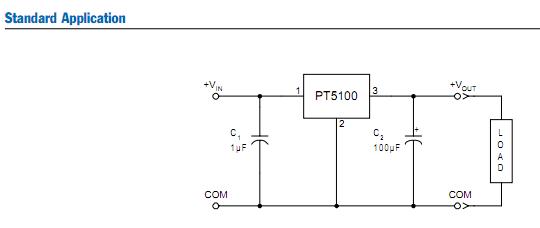

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PT5102A |
Texas Instruments |
DC/DC Converters 12Vout 1A Wide Inpt Pos Step-Down ISR |
Data Sheet |
|
|
||||||||||||
