Product Summary
The OPA335AIDBVR is a CMOS operational amplifier. It uses auto-zeroing techniques to simultaneously provide very low offset voltage (5μV max), and near-zero drift over time and temperature. This miniature, high-precision, low quiescent current amplifier offers high input impedance and rail-to-rail output swing. The OPA335AIDBVR is optimized for low-voltage, single-supply operation. The applications of the OPA335AIDBVR include: transducer applications, temperature measurement, electronic scales, medical instrumentation, battery-powered instruments, handheld test equipment.
Parametrics
OPA335AIDBVR absolute maximum ratings: (1)Supply Voltage: +7V; (2)Signal Input Terminals, Voltage: –0.5V to (V+) + 0.5V; Current: ±10mA; (3)Output Short Circuit: Continuous; (4)Operating Temperature: –40℃ to +150℃; (5)Storage Temperature:–65℃ to +150℃; (6)Junction Temperature: +150℃; (7)Lead Temperature (soldering, 10s): +300℃.
Features
OPA335AIDBVR features: (1)low offset voltage: 5μv (max); (2)zero drift: 0.05μv/℃ (max); (3)quiescent current: 285μa; (4)single-supply operation; (5)single and dual versions; (6)shutdown; (7)microsize packages.

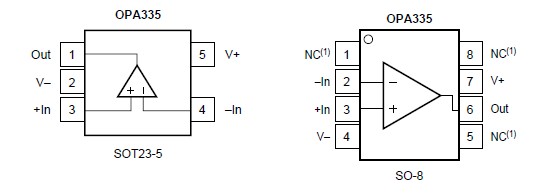

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OPA335AIDBVR |
Texas Instruments |
Operational Amplifiers - Op Amps 0.05uV/C max Single-Supply CMOS |
Data Sheet |
|
|
||||||||||||
|
OPA335AIDBVRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps 0.05uV/C max Single-Supply CMOS |
Data Sheet |
|
|
||||||||||||
