Product Summary
The OPA2134UA/2K5 is a high performance audio operational amplifier. TheOPA2134UA/2K5 is a ultra-low distortion, low noise operational amplifiers fully specified for audio applications. A true FET input stage was incorporated to provide superior sound quality and speed for exceptional audio performance. This in combination with high output drive capability and excellent dc performance allows use in a wide variety of demanding applications. In addition, the OPA2134UA/2K5s wide output swing, to within 1V of the rails, allows increased headroom making it ideal for use in any audio circuit. The OPA2134UA/2K5 op amp is easy to use and free from phase inversion and overload problems often found in common FET-input op amps.
Parametrics
OPA2134UA/2K5 absolute maximum ratings: (1)Supply Voltage, V+ to V-: 36V; (2)Input Voltage: (V–) –0.7V to (V+) +0.7V; (3)Output Short-Circuit: Continuous; (4)Operating Temperature: –40℃ to +125℃; (5)Storage Temperature: –55℃ to +125℃; (6)Junction Temperature: 150℃; (7)Lead Temperature (soldering, 10s): 300℃.
Features
OPA2134UA/2K5 features: (1)Superior sound quality; (2)Ultra low distortion: 0.00008%; (3)Low noise: 8nV/Hz; (4)True fet-input: IB = 5pA; (5)High speed: Slew rate: 20V/ms. Bandwidth: 8MHz; (6)High open-loop gain: 120dB (600W); (7)Wide supply range: 5V to 8V; (8)Single, dual, and quad versions.

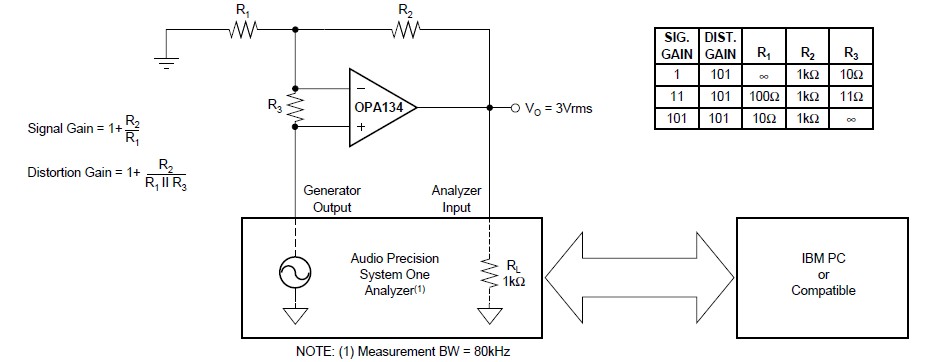

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

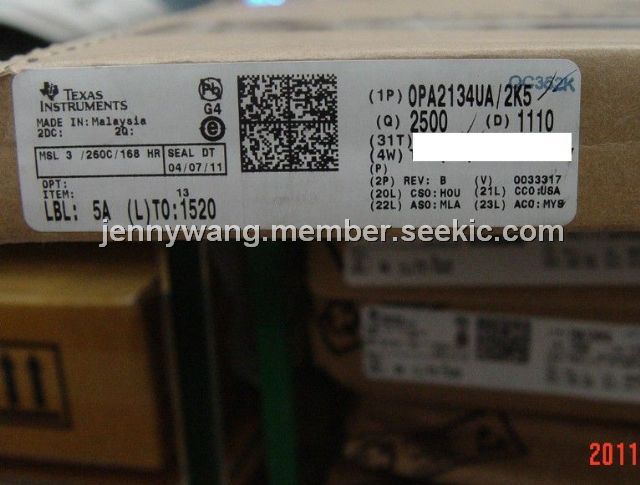

 OPA2134UA/2K5 |
Texas Instruments |
Audio Amplifiers SoundPlus Hi-Perf Aud Oper Amp |
Data Sheet |
|
|
||||||||||||
|
OPA2134UA/2K5E4 |
Texas Instruments |
Audio Amplifiers SoundPlus Hi-Perf Aud Oper Amp |
Data Sheet |
|
|
||||||||||||
