MSP430F1491IPMRG4

ultralow-power microcontroller, 16bit, 60KB, 64-LQFP, 8MHz, 1.8 V ~ 3.6 V, RoHS Compliant

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.99~2.06 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.99~2.06

PartNumber:: MSP430F1491IPMRG4

Brand:: Texas Instruments - TI | Pack: LQFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jenny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-05

From Other Seller

Part Number:MSP430F1491IPMRG4
US $1.99 - 2.06
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

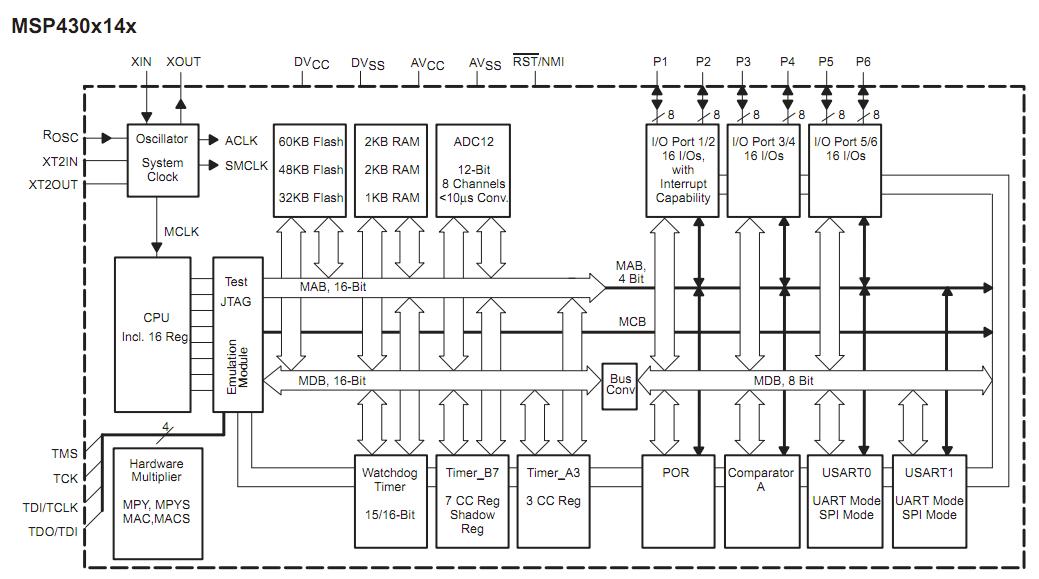

The MSP430F1491IPMRG4 is an ultralow-power microcontroller. The MSP430F1491IPMRG4 consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The MSP430F1491IPMRG4 features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 μs.

Parametrics

MSP430F1491IPMRG4 absolute maximum ratings: (1)Voltage applied at VCC to VSS: -0.3 V to + 4.1 V; (2)Voltage applied to any pin: -0.3 V to VCC+0.3 V; (3)Diode current at any device terminal: ±2 mA; (4)Storage temperature (unprogrammed device): -55 to 150℃; (5)Storage temperature (programmed device): -40 to 85℃.

Features

MSP430F1491IPMRG4 features: (1)Low Supply-Voltage Range, 1.8 V to 3.6 V; (2)Ultralow-Power Consumption: Active Mode: 280 μA at 1 MHz, 2.2V; Standby Mode: 1.6 μA; Off Mode (RAM Retention): 0.1 μA; (3)Five Power-Saving Modes; (4)Wake-Up From Standby Mode in less than 6 μs; (5)16-Bit RISC Architecture, 125-ns Instruction Cycle Time; (6)12-Bit A/D Converter With Internal Reference, Sample-and-Hold and Autoscan Feature; (7)16-Bit Timer_B With Seven Capture/Compare-With-Shadow Registers; (8)16-Bit Timer_A With Three Capture/Compare Registers; (9)On-Chip Comparator; (10)Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse.
