Product Summary
The MC7915BTG is a 1.0 A negative voltage regulator. The MC7915BTG is intended as complements to the popular MC7800 series devices. The MC7915BTG is available in the same seven－voltage options as the MC7800 devices. In addition, one extra voltage option commonly employed in MECL systems is also available in the negative MC7915BTG. Available in fixed output voltage options from －5.0 V to －24 V, these regulators employ current limiting, thermal shutdown, and safe－area compensation － making them remarkably rugged under most operating conditions. With adequate heatsinking they can deliver output currents in excess of 1.0 A.
Parametrics
MC7915BTG absolute maximum ratings: (1)Storage Junction Temperature Range Tstg －65 to +150 ℃; (2)Junction Temperature TJ +150 °C; (3)Input Voltage (－5.0 V ≥ VO ≥ －18 V)VI: －35V; (4)IInput Voltage (24 V)VI: －40V.
Features
MC7915BTG features: (1)No External Components Required; (2)Internal Thermal Overload Protection; (3)Internal Short Circuit Current Limiting; (4)Output Transistor Safe－Area Compensation; (5)Available in 2% Voltage Tolerance (See Ordering Information); (6)Pb－Free Package May be Available. The G－Suffix Denotes a Pb－Free Lead Finish.

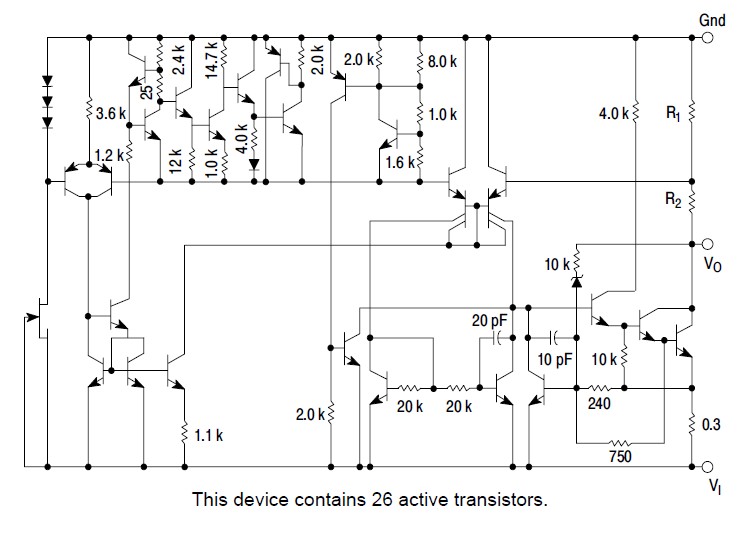

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC7905BTG |
ON Semiconductor |
Linear Regulators - Standard 5V 1A Negative |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
MC7900 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MC7905.2CT |
ON Semiconductor |
Linear Regulators - Standard 5.2V 1A Negative |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC7905ACD2TG |
ON Semiconductor |
Linear Regulators - Standard 5V 1A Negative |
Data Sheet |
|
|
||||||||||||
|
MC7905.2CTG |
ON Semiconductor |
Linear Regulators - Standard 5.2V 1A Negative |
Data Sheet |
|
|
||||||||||||
|
MC7905ACD2TR4 |
ON Semiconductor |
Linear Regulators - Standard 5V 1A Negative |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC7905ACD2T |
ON Semiconductor |
Linear Regulators - Standard 5V 1A Negative |
Data Sheet |
Negotiable |
|
||||||||||||
