Product Summary

The MC33063AP1G is a 1.5 A, step-up/down/ inverting switching regulator. The MC33063AP1G consists of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. The MC33063AP1G was specifically designed to be incorporated in Step-Down and Step-Up and Voltage-Inverting applications with a minimum number of external components. Refer to Application Notes AN920A/D and AN954/D for additional design information.

Parametrics

MC33063AP1G absolute maximum ratings: (1)Power Supply Voltage VCC: 40 Vdc; (2)Comparator Input Voltage Range VIR: -0.3 to +40 Vdc; (3)Switch Collector Voltage VC(switch): 40 Vdc; (4)Switch Emitter Voltage (VPin 1 = 40 V)VE(switch): 40 Vdc; (5)Switch Collector to Emitter Voltage VCE(switch): 40 Vdc; (6)Driver Collector Voltage VC(driver): 40 Vdc; (7)Driver Collector Current (Note 1)IC(driver): 100 mA; (8)Switch Current ISW: 1.5 A.

Features

MC33063AP1G features: (1)Operation from 3.0 V to 40 V Input; (2)Low Standby Current; (3)Current Limiting; (4)Output Switch Current to 1.5 A; (5)Output Voltage Adjustable; (6)Frequency Operation to 100 kHz; (7)Precision 2% Reference; (8)Pb-Free Packages are Available.

Diagrams

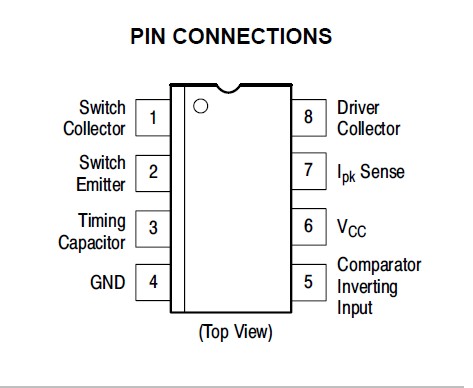

 MC33063AP1G pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

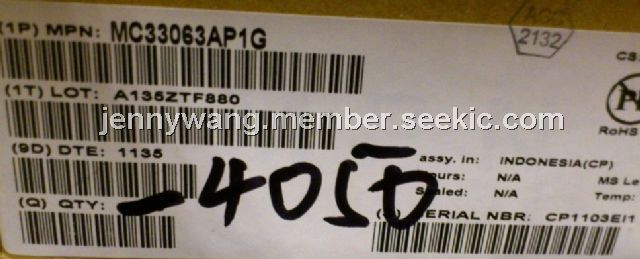

MC33063AP1G
MC33063AP1G

ON Semiconductor

Switching Converters, Regulators & Controllers 40V 1.5A Buck/Boost/Inverting

Data Sheet

0-1: $0.54
1-25: $0.45
25-100: $0.32
100-500: $0.27
