Product Summary
The MAX4163ESA+T is a single/dual/quad, micropower operational amplifier that combine an exceptional bandwidth to power consumption ratio with true rail－to－rail inputs and outputs. The MAX4163ESA+T consumes a mere 25uA quiescent current per amplifier, yet achieve 200kHz gain－bandwidth product and are unity－gain stable while driving any capacitive load. The MAX4163ESA+T operates from either a single supply (2.5V to 10V) or dual supplies (±1.25V to ±5V), with an input common－mode voltage range that extends 250mV beyond either supply rail. These amplifiers use a proprietary architecture to achieve a very high input commonmode rejection ratio without the midswing nonlinearities present in other rail－to－rail op amps. This architecture also maintains high open－loop gain and output swing while driving substantial loads.
Parametrics
MAX4163ESA+T absolute maximum ratings: (1)Supply Voltage (VDD to VSS): 11V; (2)IN+, IN－, OUT Voltage : (VDD + 0.3V)to (VSS － 0.3V); (3)Short－Circuit Duration (to either rail): Continuous; (4)Operating Temperature Range : －40℃ to +85℃; (5)Storage Temperature Range : －65℃ to +150℃; (6)Junction Temperature: +150℃; (7)Lead Temperature (soldering, 10s): +300℃; (8)Soldering Temperature (reflow, UCSP): +260℃.
Features
MAX4163ESA+T features: (1)Rail－to－Rail Output Swing; (2)200kHz Gain－Bandwidth Product; (3)25uA Quiescent Current per Amplifier; (4)Excellent CMRR, PSRR, and Gain Linearity; (5)No Phase Reversal for Overdriven Inputs; (6)Unity－Gain Stable; (7)Stable with Any Capacitive Load; (8)Internally Short－Circuit Protected to Either Rail.

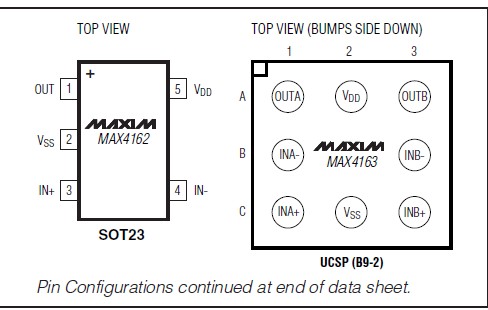

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX4163ESA+T |
Maxim Integrated Products |
Operational Amplifiers - Op Amps uPower Single Supply Rail-Rail |
Data Sheet |
|
|
||||||||||||
