Product Summary
The LM217T is a 1.2V to 37V voltage regulator. It is a monolithic integrated circuit in TO-220, ISOWATT220, TO-3 and D2PAK packages intended for use as positive adjustable voltage regulators. The LM217T is designed to supply more than 1.5A of load current with an output voltage adjustable over a 1.2 to 37V range. The nominal output voltage is selected by means of only a resistive divider, making the LM217T exceptionally easy to use and eliminating the stocking of many fixed regulators.
Parametrics
LM217T absolute maximum ratings: (1)Vi-o Input-output Differential Voltage: 40 V; (2)IO Output Current: Intenrally Limited; (3)Top Operating Junction Temperature for: 0 to 125 ℃; (4)Ptot Power Dissipation: Internally Limited; (5)Tstg Storage Temperature: -65 to 150 ℃.
Features
LM217T features: (1)output voltagerange: 1.2 to 37v; (2)output current in excess of 1.5a; (3)0.1% line and load regulation; (4)floatingoperation for high voltages; (5)complete seriesof protections: current limiting, thermal; shutdown andsoa control.

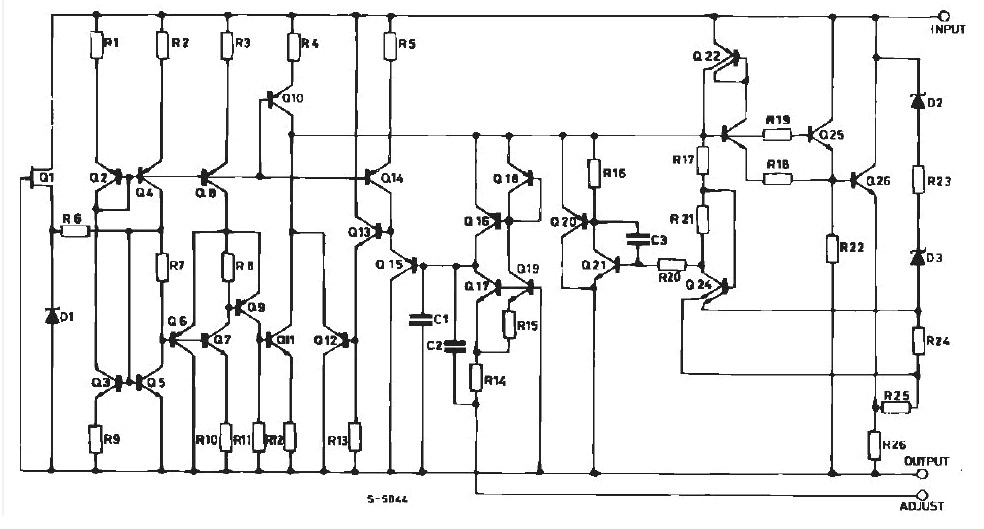

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM217T |
STMicroelectronics |
Linear Regulators - Standard 1.2-37V Adj Positive |
Data Sheet |
|
|
||||||||||||
|
LM217T-DG |
STMicroelectronics |
Linear Regulators - Standard 1.2V to 37V ADJ Reg 1.5A 40V Dual Gauge |
Data Sheet |
|
|
||||||||||||
