Product Summary

The LM201ANG is a non compensated single operational amplifier. A general purpose operational amplifier that allows the user to choose the compensation capacitor best suited to his needs. With proper compensation, summing amplifier slew rates to 10 V/us can be obtained.

Parametrics

LM201ANG absolute maximum ratings: (1)Power Supply Voltage VCC, VEE: ±22Vdc; (2)Input Differential Voltage VID: ±30 V; (3)Input Common Mode Range (Note 1)VICR: ±15 V; (4)Output Short Circuit Duration tSC: Continuous; (5)Operating Ambient Temperature Range TA: －25 to +85 ℃; (6)Storage Temperature Range Tstg: －65 to +150 ℃.

Features

LM201ANG features: (1)Low Input Offset Current: 20 nA Maximum Over Temperature Range; (2)External Frequency Compensation for Flexibility; (3)Class AB Output Provides Excellent Linearity; (4)Output Short Circuit Protection; (5)Guaranteed Drift Characteristics; (6)Pb Free Packages are Available.

Diagrams

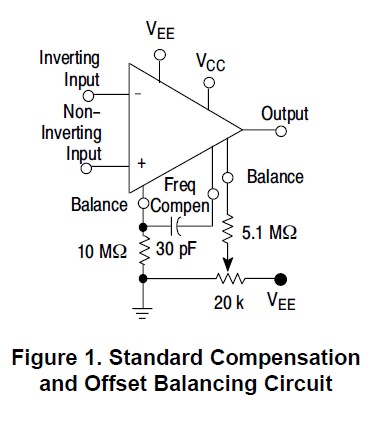

LM201ANG pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM201ANG
LM201ANG
ON Semiconductor
Operational Amplifiers - Op Amps Precision Single Chnl -25 to 85deg C
Data Sheet
0-1: $0.41
1-25: $0.35
25-100: $0.24
100-500: $0.21
