Product Summary
The ISO7221BDRG4 is a dual-channel digital isolator. To facilitate PCB layout, the channels are oriented in opposite directions in the device. The ISO7221BDRG4 has a logic input and output buffer separated by TI’s silicon-dioxide (SiO2) isolation barrier, providing galvanic isolation of up to 4000 V. Used in conjunction with isolated power supplies, the device block high voltage, isolate grounds, and prevent noise currents on a data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuitry. The applications of the ISO7221BDRG4 include industrial fieldbus, computer peripheral interface, servo control interface and data acquisition.
Parametrics
ISO7221BDRG4 absolute maximum ratings: (1)VCC, Supply voltage, VCC1, VCC2: –0.5 to 6 V; (2)VI, Voltage at IN, OUT: –0.5 to 6 V; (3)IO, Output current: ±15 mA; (4)TJ, Maximum junction temperature: 170℃; (5)ESD, electrostatic discharge, human body model: ±4kV; field-induced-charged device model: ±1kV; machine model: ±2000V.
Features
ISO7221BDRG4 features: (1)1,5,25,and 150-Mbps signaling rate options: low channel-to-channel output skew; 1ns max; low pulse width distortion: 1ns max; low jitter content; 1ns typ at 150Mbps; (2)typical 25-year life at rated voltage; (3)4000-Vpeak isolation, 560V peak VIORM; (4)operates with 3.3V or 5V supplies; (5)4KV ESD protection; (6)high electromagnetic immunity; (7)-40 to 125℃ operating range.

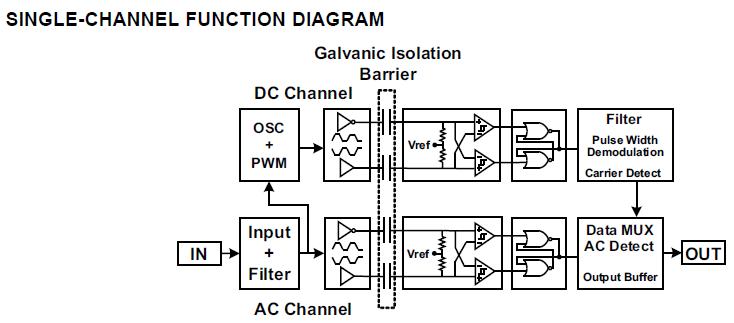

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ISO7221BDRG4 |
Texas Instruments |
Isolator Interface IC Dual Channel 1/1 5Mbps Dig Isolator |
Data Sheet |
|
|
|||||||||||||
