Product Summary

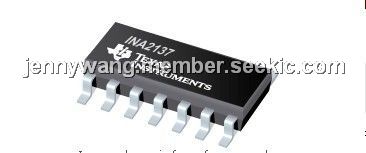

The INA2137PA is a differential line receiver consisting of high performance op amps with on-chip precision resistors. The INA2137PA is fully specified for high performance audio applications and have excellent ac specifications, including low distortion (0.0005% at 1kHz) and high slew rate (14V/μs), assuring good dynamic response. In addition, wide output voltage swing and high output drive capability allow use in a wide variety of demanding applications. The INA2137PA features completely independent circuitry for lowest crosstalk and freedom from interaction, even when overdriven or overloaded. The INA2137PA is available in 8-pin DIP and SO-8 surface-mount packages. It is specified for operation over the extended industrial temperature range, –40℃ to +85℃.
Parametrics
INA2137PA absolute maximum ratings: (1)Supply Voltage, V+ to V– : 40V; (2)Input Voltage Range: ±80V; (3)Output Short-Circuit (to ground): Continuous; (4)Operating Temperature: –55℃ to +125℃; (5)Storage Temperature: –55℃ to +125℃; (6)Junction Temperature: +150℃; (7)Lead Temperature (soldering, 10s): +300℃.
Features
INA2137PA features: (1)Single and dual versions; (2)Low distortion: 0.0005% at f = 1kHz; (3)High slew rate: 14V/ms; (4)Fast settling time: 3ms to 0.01%; (5)Wide supply range: ±4V to ±18V; (6)Low quiescent current: 2.9mA max; (7)High cmrr: 90dB; (8)Fixed gain = ±6dB; (9)Packages single: 8-PIN DIP, SO-8; DUAL: 14-PIN DIP, SO-14.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
INA2137PA |
Texas Instruments |
Audio Transmitters, Receivers, Transceivers Aud Diff Line Rcvrs +-6dB (G=1/2 or 2) |
Data Sheet |
|
|
|||||||||||||
INA2137PAG4 |
Texas Instruments |
Audio Transmitters, Receivers, Transceivers Aud Diff Line Rcvrs +-6dB (G=1/2 or 2) |
Data Sheet |
|
|
