Product Summary

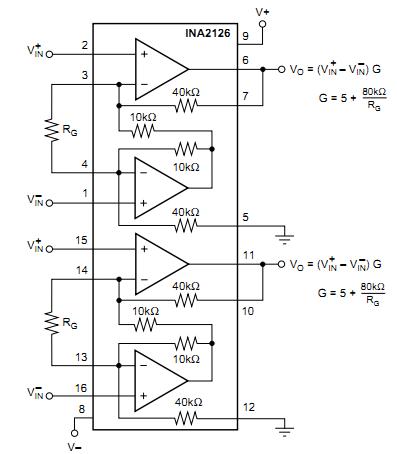

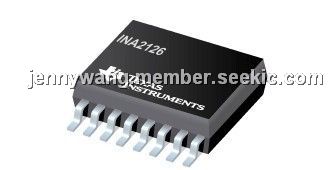

The INA2126UA/2K5E4 is a precision instrumentation amplifier for accurate, low noise differential signal acquisition. Their two-op-amp design provides excellent performance with very low quiescent current (175μA/channel). This, combined with a wide operating voltage range of ±1.35V to ±18V, makes the INA2126UA/2K5E4 ideal for portable instrumentation and data acquisition systems. The applications of the INA2126UA/2K5E4 include industrial sensor amplifier: bridge, rtd, thermocouple, physiological amplifier: ecg, eeg, emg, multi-channel data acquisition and portable, battery operated systems.
Parametrics
INA2126UA/2K5E4 absolute maximum ratings: (1)Power Supply Voltage, V+ to V–: 36V; (2)Input Signal Voltage: (V–)–0.7 to (V+)+0.7V; (3)Input Signal Current: 10mA; (4)Output Short Circuit: Continuous; (5)Operating Temperature: –55 to +125℃; (6)Storage Temperature: –55 to +125℃; (7)Lead Temperature (soldering, 10s): +300℃.
Features
INA2126UA/2K5E4 features: (1)low quiescent current: 175μA/chan; (2)wide supply range: ±1.35V to ±18V; (3)low offset voltage: 250μV max; (4)low offset drift: 3μV/℃ max; (5)low noise: 35nV/Hz; (6)low input bias current: 25nA max; (7)8-PIN DIP, SO-8, MSOP-8 surface- mount dual: 16-Pin DIP, SO-16, SSOP-16
