INA155UA/2K5G4

CMOS instrumentation amplifier, 550kHz, 8SOIC, 2.7 V ~ 5.5 V, Rail-to-Rail, 50mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.54~1.59 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.54~1.59

PartNumber:: INA155UA/2K5G4

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jenny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-05

From Other Seller

Part Number:INA155UA/2K5G4
US $1.54 - 1.59
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

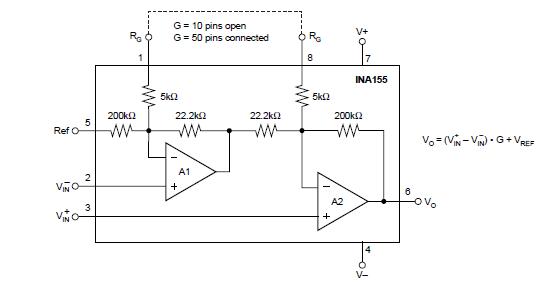

The INA155UA/2K5G4 is a low-cost CMOS instrumentation amplifier with rail-to-rail output swing optimized for low voltage, single-supply operation. The applications of the INA155UA/2K5G4 include industrial sensor amplifiers bridge, rtd, thermocouple, flow, position, medical equipment ecg, eeg, emg amplifiers, driving a/d converters, pcmcia cards, audio processing, communications, test equipment and low cost automotive instrumentation.

Parametrics

INA155UA/2K5G4 absolute maximum ratings: (1)Supply Voltage, V+ to V–: 7.5V; (2)Signal Input Terminals, Voltage: (V–) – 0.5V to (V+) + 0.5V; Current: 10mA; (3)Output Short-Circuit: Continuous; (4)Operating Temperature:–65 to +150℃; (5)Storage Temperature: –65 to +150℃; (6)Junction Temperature: +150℃; (7)Lead Temperature (soldering, 10s): +300℃.

Features

INA155UA/2K5G4 features: (1)rail-to-rail output swing: Within 10mV; (2)low offset voltage: ±200mV; (3)low offset drift: ±5mV/℃; (4)internal fixed gain = 10V/V or 50V/V; (5)specified temperature range: –55 to +125℃; (6)low input bias current: 0.2pA; (7)wide bandwidth: 550kHz in G = 10; (8)high slew rate: 6.5V/ms; (9)low cost; (10)SO-8 and tiny MSOP-8 packages.
