DAC908U/1KG4

Digital-to-Analog Converter, 28-SOIC, 8-bit, RoHS Compliant, Parallel

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.15~2.38 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.15~2.38

PartNumber:: DAC908U/1KG4

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jenny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-04

From Other Seller

Part Number:DAC908U/1KG4
US $2.15 - 2.38
ALC662

US $0.80 - 1.50 / Piece
(0) Remove
STK795-810

US $12.00 - 16.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

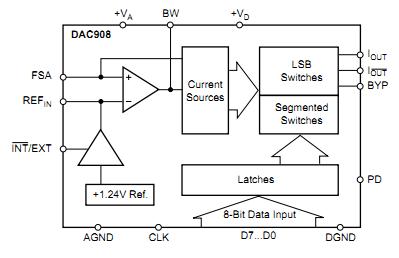

The DAC908U/1KG4 is a high-speed, Digital-to-Analog Converter (DAC) offering an 8-bit resolution option within the SpeedPlus family of high-performance converters. Featuring pin compatibility among family members, the DAC908U/1KG4 provides a component selection option to an 10-, 12-, and 14-bit resolution, respectively. All models within this family of DACs support update rates in excess of 165MSPS with excellent dynamic performance, and are especially suited to fulfill the demands of a variety of applications. The applications of the DAC908U/1KG4 include medical instrumentation ultrasound (dbf), video, digital tv, waveform generation direct digital synthesis (dds) arbitrary waveform generation (arb), test instrumentation and communications.

Parametrics

DAC908U/1KG4 absolute maximum ratings: (1)+VA to AGND: –0.3V to +6V; (2)+VD to DGND: –0.3V to +6V; (3)AGND to DGND:–0.3V to +0.3V; (4)+VA to +VD: –6V to +6V; (5)CLK, PD to DGND: –0.3V to VD + 0.3V; (6)D0-D7 to DGND: –0.3V to VD + 0.3V; (7)IOUT, IOUT to AGND: –1V to VA + 0.3V; (8)BW, BYP to AGND:–0.3V to VA + 0.3V; (9)REFIN, FSA to AGND: –0.3V to VA + 0.3V; (10)INT/EXT to AGND:–0.3V to VA + 0.3V; (11)Junction Temperature: +150℃; (12)Case Temperature: +100℃; (13)Storage Temperature: +125℃.

Features

DAC908U/1KG4 features: (1)single +5V or +3V operation; (2)high SFDR: 5.04MHz Output at 100MSPS: 67dBc; (3)low glitch: 3pV-s; (4)low power: 170mW at +5V; (5)internal reference: Optional Ext. Reference; Adjustable Full-Scale Range; Multiplying Option.
