DAC8534IPWRG4

quad channel, 16-bit, Digital-to-Analog Converter, 16-TSSOP, Single Supply, RoHS Compliant

Rated 5 Rating 5 | reviews | Write a review

Price:: US $9.05~9.21 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $9.05~9.21

PartNumber:: DAC8534IPWRG4

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jenny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-04

From Other Seller

Part Number:DAC8534IPWRG4
US $9.05 - 9.21
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

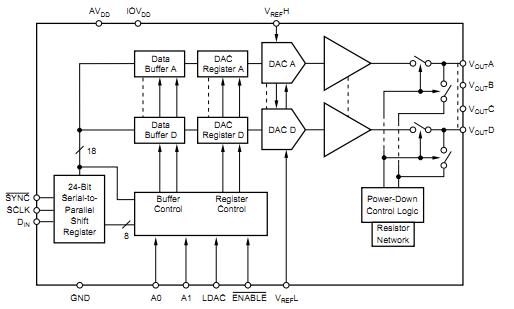

The DAC8534IPWRG4 is a quad channel, 16-bit Digital-to-Analog Converter (DAC) offering low-power operation and a flexible serial host interface. Each on-chip precision output amplifier allows rail-to-rail output swing to be achieved over the supply range of 2.7V to 5.5V. The DAC8534IPWRG4 supports a standard 3-wire serial interface capable of operating with input data clock frequencies up to 30MHz for IOVDD = 5V. The applications of the DAC8534IPWRG4 include portable instrumentation, closed-loop servo-control, process control, data acquisition systems, programmable attenuation and PC peripherals.

Parametrics

DAC8534IPWRG4 absolute maximum ratings: (1)AVDD to GND: –0.3V to +6V; (2)Digital Input Voltage to GND: –0.3V to +AVDD + 0.3V; (3)VOUTA to VOUTD to GND: –0.3V to + AVDD + 0.3V; (4)Operating Temperature Range: –40℃ to +105℃; (5)Storage Temperature Range: –65℃ to +150℃; (6)Junction Temperature Range (TJ max): +150℃; (7)Power Dissipation: (TJ max – TA)/θJA; (8)θJA Thermal Impedance: 118℃/W; (9)θJC Thermal Impedance: 29℃/W; (10)Lead Temperature, Soldering: Vapor Phase (60s): +215℃; Infrared (15s): +220℃.

Features

DAC8534IPWRG4 features: (1)power supply: +2.7V to +5.5V; (2)micropower operation: 950μA at 5V; (3)16-bit monotonic over temperature; (4)settling time: 10μs to ±0.003% FSR; (5)ultra-low ac crosstalk: –100dB typ; (6)power-on reset to zero-scale; (7)on-chip output buffer amplifier with rail-to-rail operation; (8)double buffered input architecture; (9)simultaneous or sequential output update and power-down; (10)16 channel broadcast capability; (11)schmitt-triggered inputs; (12)TSSOP-16 package.
