DAC7624UB

12-Bit, Quad Voltage Output, Digital-to-Analog Converter, 20mW, SOP-28, settling time 10ms to 0.012%

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.30~14.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $10.30~14.60

PartNumber:: DAC7624UB

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jenny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-21

From Other Seller

Part Number:DAC7624UB
US $10.30 - 14.60
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

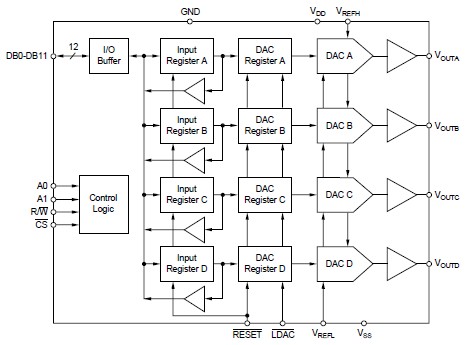

The DAC7624UB is a 12-bit quad voltage output digital-to-analog converter with guaranteed 12-bit monotonic performance over the specified temperature range. The DAC7624UB accepts 12-bit parallel input data, has double-buffered DAC input logic (allowing simultaneous update of all DACs), and provides a readback mode of the internal input registers. An asynchronous reset clears all registers to a mid-scale code of 800H. The DAC7624UB can operate from a single +5V supply or from +5V and –5V supplies. Low power and small size per DAC make the DAC7624UB ideal for automatic test equipment, DAC-per-pin programmers, data acquisition systems, and closed-loop servo-control. The device is available in a 28-pin plastic doublewide or a 28-lead SOIC package.

Parametrics

DAC7624UB absolute maximum ratings: (1)VDD to VSS: –0.3V to 11V; (2)VDD to GND: –0.3V to 5.5V; (3)VREFL to VSS: –0.3V to (VDD – VSS); (4)VDD to VREFH: –0.3V to (VDD – VSS); (5)VREFH to VREFL: –0.3V to (VDD – VSS); (6)Digital Input Voltage to GND: –0.3V to VDD + 0.3V; (7)Digital Output Voltage to GND: –0.3V to VDD + 0.3V; (8)Maximum Junction Temperature: +150℃; (9)Operating Temperature Range: –40℃ to +85℃; (10)Storage Temperature Range: –65℃ to +150℃; (11)Lead Temperature (soldering, 10s): +300℃.

Features

DAC7624UB features: (1)low power: 20mW; (2)unipolar or bipolar operation; (3)settling time: 10ms to 0.012%; (4)12-bit linearity and monotonicity: –40℃ to +85℃; (5)reset to mid-scale (DAC7624) or zero-scale (DAC7625); (6)data readback; (7)double-buffered data inputs.
