Product Summary
The DAC7554IDGSRG4 is a quad-channel, voltage-output DAC with exceptional linearity and monotonicity. Its proprietary architecture minimizes undesired transients such as code to code glitch and channel to channel crosstalk. The low-power DAC7554IDGSRG4 operates from a single 2.7-V to 5.5-V supply. The DAC7554IDGSRG4 output amplifiers can drive a 2-kΩ, 200-pF load rail-to-rail with 5- µ s settling time; the output range is set using an external voltage reference. The applications of the DAC7554IDGSRG4 include Portable Battery-Powered Instruments, Digital Gain and Offset Adjustment, Programmable Voltage and Current Sources, Programmable Attenuators and Industrial Process Control.
Parametrics
DAC7554IDGSRG4 absolute maximum ratings: (1)V DD to GND: – 0.3 V to 6 V; (2)Digital input voltage to GND: – 0.3 V to VDD + 0.3 V; (3)Vout to GND: – 0.3 V to VDD + 0.3 V; (4)Operating temperature range: – 40 to 105℃; (5)Storage temperature range: – 65 to 150℃; (6)Junction temperature (T Max): 150℃.
Features
DAC7554IDGSRG4 features: (1)2.7-V to 5.5-V Single Supply; (2)12-Bit Linearity and Monotonicity; (3)Rail-to-Rail Voltage Output; (4)Settling Time: 5 μ s (Max); (5)Ultralow Glitch Energy: 0.1 nVs; (6)Ultralow Crosstalk: – 100 dB; (7)Low Power: 880 μ A (Max); (8)Per-Channel Power Down: 2 μ A (Max); (9)Power-On Reset to Zero Scale; (10)SPI-Compatible Serial Interface: Up to 50 MHz; (11)Simultaneous or Sequential Update; (12)Specified Temperature Range: – 40 to 105℃; (13)Small 10-Lead MSOP Package.

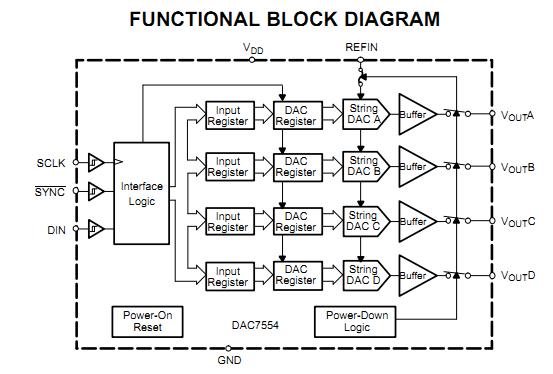

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

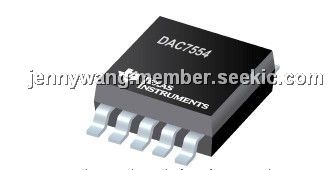

DAC7554IDGSRG4 |
Texas Instruments |
DAC (D/A Converters) Low-Power Low-Glitch 12-Bit DAC |
Data Sheet |
|
|
|||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||
DAC701 |
Other |
Data Sheet |
Negotiable |
|
||||||||||
DAC701KH |
Texas Instruments |
IC 16BIT VOUT UNIPOLAR D/A 24DIP |
Data Sheet |
Negotiable |
|
|||||||||
DAC702 |
Other |
Data Sheet |
Negotiable |
|
||||||||||
DAC702BH/CH/SH |
Other |
Data Sheet |
Negotiable |
|
||||||||||
DAC703 |
Other |
Data Sheet |
Negotiable |
|
||||||||||
DAC703BH |
Texas Instruments |
IC 16-BIT VOUT BIPOLAR D/A 24-DI |
Data Sheet |
Negotiable |
|
